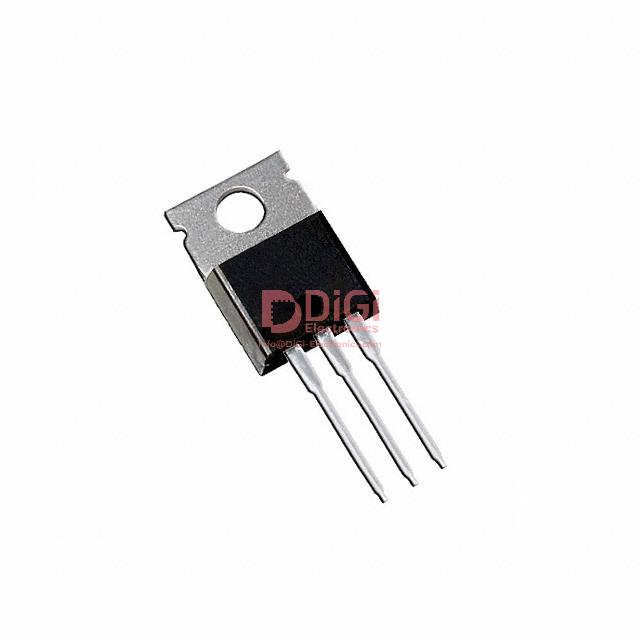

NTP18N06G The ON Semiconductor NTP18N06G is an N-Channel MOSFET with a 60V drain-to-source voltage and a continuous drain current of 15A. It is housed in a TO-220AB package.
Mfr Part #:

NTP18N06G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NTP18N06G is an N-Channel MOSFET with a 60V drain-to-source voltage and a continuous drain current of 15A. It is housed in a TO-220AB package.
✓ Total Stock: 5,788 pcs
$ Price Range: $0.99

NTP18N06G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
788 pcs
On Request
788 pcs On Request 1 On Request On Request 1025+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTP18N06G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Supplier Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NTP18N06G Description

Short technical summary and product information.

The NTP18N06G from ON Semiconductor is an N-Channel MOSFET designed for various electronic applications. It features a drain-to-source voltage (Vdss) of 60V and can handle a continuous drain current (Id) of 15A at 25°C. The MOSFET has a low on-resistance (Rds On) of 90mOhm at 7.5A and 10V gate-source voltage, contributing to efficient power handling.



With a maximum power dissipation of 48.4W at case temperature, this component is suitable for applications requiring moderate power switching. The gate threshold voltage (Vgs(th)) is 4V at 250µA, and the maximum gate-source voltage is ±20V. The operating temperature range is -55°C to 175°C (TJ).



This MOSFET utilizes Metal Oxide Semiconductor (MOSFET) technology and is provided in a Through Hole mounting type within a TO-220-3 package. Its N-Channel configuration makes it a versatile component for switching and amplification circuits.

NTP18N06G Quick Information

Product Type: MOSFET
Canonical Name: NTP18N06G N-Channel MOSFET
Subcategory: Single FETs, MOSFETs

NTP18N06G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTP18N06G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTP18N06G Features

  • N-Channel MOSFET with 60V drain-source voltage.
  • Continuous drain current of 15A at 25°C.
  • Low on-resistance of 90mOhm at 7.5A, 10V.
  • Maximum power dissipation of 48.4W.
  • Operates from -55°C to 175°C.

NTP18N06G Applications

  • Used in power switching circuits
  • Suitable for motor control applications
  • Ideal for high-efficiency power supplies
  • Mounts in TO-220AB through-hole packages

NTP18N06G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage for the NTP18N06G?

The drain-to-source voltage (Vdss) is 60 V.

What is the continuous drain current of the NTP18N06G?

The continuous drain current (Id) is 15A at 25°C.

What is the maximum on-resistance for the NTP18N06G?

The Rds On is a maximum of 90mOhm at 7.5A and 10V.

What is the operating temperature range of the NTP18N06G?

The operating temperature range is -55°C to 175°C (TJ).

What package type is the NTP18N06G MOSFET supplied in?

The NTP18N06G is supplied in a TO-220-3 package with Through Hole mounting.
