| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

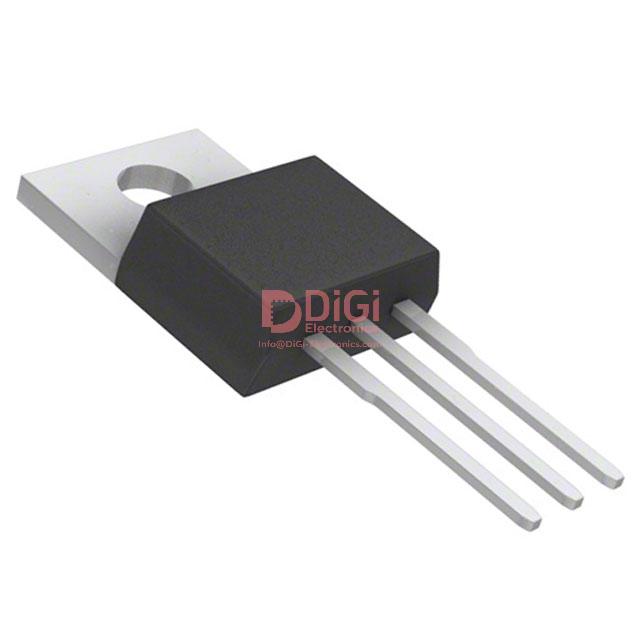

The ON Semiconductor NTP095N65S3HF is a SUPERFET III N-Channel MOSFET designed for high-voltage applications requiring excellent on-resistance and low gate charge. It features a drain-source voltage rating of 650V and a continuous drain current of 36A at 25°C.
This MOSFET utilizes charge balance technology for minimized conduction loss and superior switching performance, making it suitable for power systems demanding miniaturization and higher efficiency. The optimized reverse recovery performance of its body diode can enhance system reliability.
Key electrical characteristics include a maximum Rds(on) of 95mOhm at 18A and 10V gate drive, a gate threshold voltage of 5V at 860µA, and a typical gate charge of 66 nC. The device has a maximum power dissipation of 272W at 25°C and operates within a temperature range of -55°C to +150°C.
Packaged in a TO-220-3 through-hole configuration, the NTP095N65S3HF is suitable for various power supply applications, including telecom, industrial, EV chargers, and UPS/solar systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) for the NTP095N65S3HF MOSFET is 650 V.
The continuous drain current (Id) for the NTP095N65S3HF is 36 A at 25°C.
The typical Rds(on) for the NTP095N65S3HF MOSFET is 82 mOhm.
The NTP095N65S3HF MOSFET is supplied in a TO-220-3 package.
The operating and storage temperature range for the NTP095N65S3HF is -55°C to +150°C.
Yes, the NTP095N65S3HF is RoHS3 compliant.
