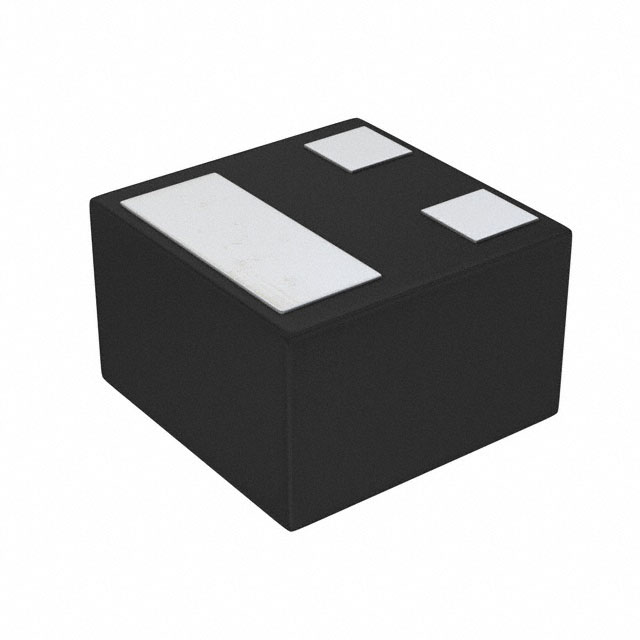

The ON Semiconductor NTNS3193NZT5G is a single N-Channel MOSFET designed for small signal load switching, analog switching, and high-speed interfacing. It features an ultra-small and thin XLLGA3 package measuring 0.62 x 0.62 x 0.4 mm, making it suitable for power management in ultra-portable products.
This MOSFET has a maximum drain-to-source voltage (VDSS) of 20V and a continuous drain current (ID) of 224mA at 25°C ambient temperature. The on-resistance (RDS(on)) is a maximum of 1.4 Ohms at 100mA and 4.5V gate-to-source voltage. The gate-to-source voltage (VGS) range is ±8V, with a gate threshold voltage (VGS(th)) of 1V maximum at 250µA.
Key electrical characteristics include an input capacitance (Ciss) of 15.8 pF at 15V and a gate charge (Qg) of 0.7 nC at 4.5V. The device operates within a junction temperature range of -55°C to 150°C. It is constructed using MOSFET (Metal Oxide) technology.
The NTNS3193NZT5G is mounted on the surface and comes in a 3-XLLGA package. It is Pb-free, Halogen-free/BFR-free, and RoHS compliant. The maximum power dissipation is 120mW at 25°C ambient temperature, with a junction-to-ambient thermal resistance of 1040 °C/W.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (VDSS) is 20V.
The continuous drain current is 224mA at 25°C ambient temperature.
The Rds On (Max) is 1.4 Ohm at 100mA drain current and 4.5V gate-to-source voltage.
The operating temperature range is -55°C to 150°C (TJ).
It is in a 3-XLLGA package.
Yes, it is RoHS3 Compliant.
