NTND31015NZTAG The On Semiconductor NTND31015NZTAG is a dual N-channel MOSFET designed for small signal applications. It features a 20V drain-to-source voltage and a 200mA continuous drain current.
Mfr Part #:

NTND31015NZTAG

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NTND31015NZTAG is a dual N-channel MOSFET designed for small signal applications. It features a 20V drain-to-source voltage and a 200mA continuous drain current.
✓ Total Stock: 88,192 pcs
$ Price Range: $0.99

NTND31015NZTAG Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
71,132 pcs
On Request
71132 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
17,020 pcs
On Request
17020 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request 1533 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTND31015NZTAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Power Dissipation
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

NTND31015NZTAG Description

Short technical summary and product information.

The NTND31015NZTAG from On Semiconductor is a dual N-channel MOSFET. This device offers a low RDS(ON) solution in an ultra-small 0.65 mm x 0.90 mm package, making it suitable for power management in ultra-portable products.



Key electrical characteristics include a drain-to-source voltage of 20V and a continuous drain current of 200mA at 25°C ambient temperature. The Rds(On) is specified at a maximum of 1.5 Ohm at 100mA and 4.5V gate-to-source voltage. The device operates over a wide temperature range from -55°C to 150°C.



This MOSFET is designed for applications such as small signal load switching, analog switching, and high-speed interfacing. It is Pb-Free, Halogen Free/BFR Free, and RoHS compliant.

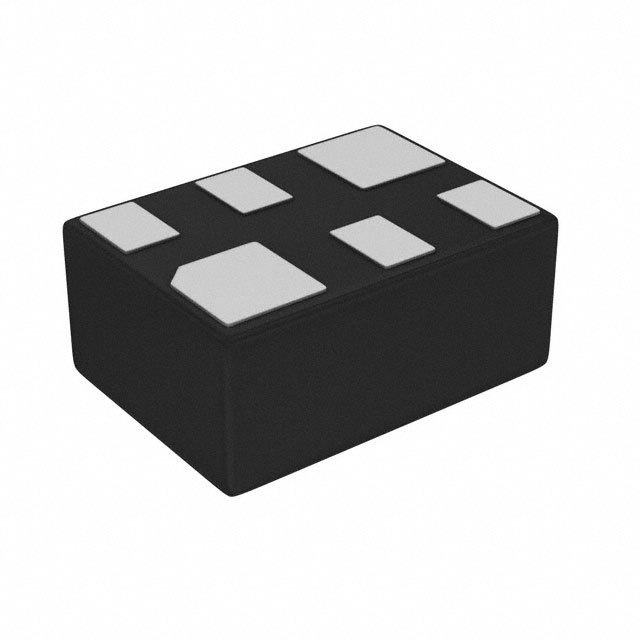

The component is housed in a 6-XLLGA package, measuring 0.9x0.65mm, and is designed for surface mounting.

NTND31015NZTAG Quick Information

Product Type: MOSFET
Canonical Name: Dual N-Channel MOSFET
Subcategory: N-Channel

NTND31015NZTAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTND31015NZTAG Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTND31015NZTAG Features

  • Dual N-Channel MOSFET configuration.
  • 20V drain-to-source voltage rating.
  • 200mA continuous drain current.
  • Low RDS(ON) up to 1.5 Ohm.
  • Compact 6-XLLGA surface-mount package.

NTND31015NZTAG Applications

  • Small signal load switch applications.
  • Used for analog switching.
  • Suitable for high-speed interfacing.
  • Optimized for portable products.

NTND31015NZTAG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage of the NTND31015NZTAG?

The drain-to-source voltage (Vdss) is 20V.

What is the continuous drain current for the NTND31015NZTAG?

The continuous drain current is 200mA at 25°C ambient temperature.

What is the maximum Rds On for the NTND31015NZTAG?

The maximum Rds On is 1.5 Ohm at 100mA gate-to-source voltage of 4.5V.

What is the operating temperature range of the NTND31015NZTAG?

The operating junction and storage temperature range is -55°C to 150°C.

What package type is the NTND31015NZTAG MOSFET in?

The NTND31015NZTAG is in a 6-XLLGA package.

Is the NTND31015NZTAG RoHS compliant?

Yes, the NTND31015NZTAG is RoHS3 compliant.
