| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,110,572 pcs
|
2110572 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

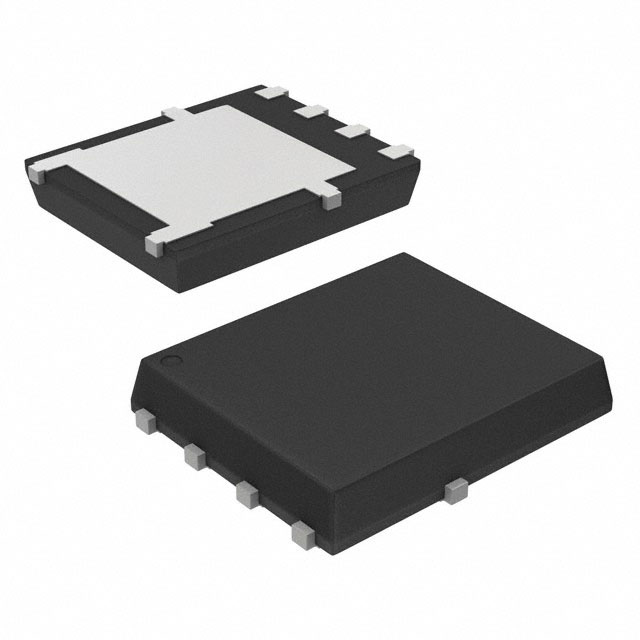

The NTMFS5C442NT1G from On Semiconductor is a power MOSFET designed for efficient operation. It features an N-Channel configuration with a maximum drain-to-source voltage of 40V.
Key electrical characteristics include a low on-resistance of 2.3 mOhm at 50A and 10V gate-to-source voltage, minimizing conduction losses. The device also boasts low gate charge (Qg) and capacitance, reducing driver losses. It can handle a continuous drain current of up to 140A at a case temperature of 25°C and 3.7W power dissipation at an ambient temperature of 25°C.
This MOSFET is housed in a compact 8-PowerTDFN, 5-lead package (5-DFN 5x6) suitable for surface mounting, making it ideal for space-constrained designs. The operating temperature range is -55°C to 175°C.
Designed for performance and reliability, the NTMFS5C442NT1G is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage is 40V.
The maximum on-resistance is 2.3mOhm at 50A and 10V.
The continuous drain current is 140A at 25°C (Tc) and 29A at 25°C (Ta).
The operating temperature range is -55°C to 175°C.
It is supplied in an 8-PowerTDFN, 5-lead package.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
