| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67,615 pcs
|
67615 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The ON Semiconductor NTLUS3A90PZTAG is a P-Channel MOSFET designed for power management applications in portable products. It offers a drain-to-source voltage of -20V and a continuous drain current of 2.6A at 25°C ambient temperature.
Key electrical characteristics include a low on-resistance of 62mOhm at 4A and 4.5V, and a gate threshold voltage of 1V at 250µA. The MOSFET also features a gate-to-source voltage range of ±8V and an input capacitance of 950pF at 10V.

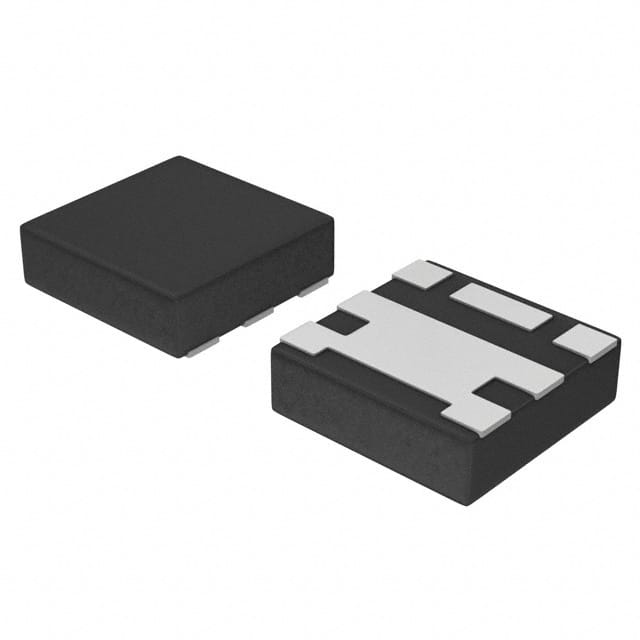

This device is housed in a compact 6-UDFN (1.6x1.6mm) package, suitable for space-constrained designs. It operates within a temperature range of -55°C to 150°C. The MOSFET is Pb-free and Halogen-free, making it compliant with environmental standards.
Applications include high-side load switching, PA switches, and battery switches, particularly in devices such as cell phones, PMPs, DSCs, and GPS units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-20 V
2.6 A (Ta)
62mOhm @ 4A, 4.5V
-55°C ~ 150°C (TJ)
6-UDFN (1.6x1.6)
RoHS3 Compliant
1 Unlimited
