| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,000 pcs
|
45000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The ON Semiconductor NTLUS3A18PZTBG is a P-Channel MOSFET designed for power management applications in portable products. It features a drain-to-source voltage of -20V and a continuous drain current of up to 5.1A at 25°C ambient temperature.
This MOSFET boasts an ultra-low Rds(on) of 18mOhm at 7A and 4.5V, contributing to efficient power delivery. The gate is protected by an ESD diode. It operates within a temperature range of -55°C to 150°C.

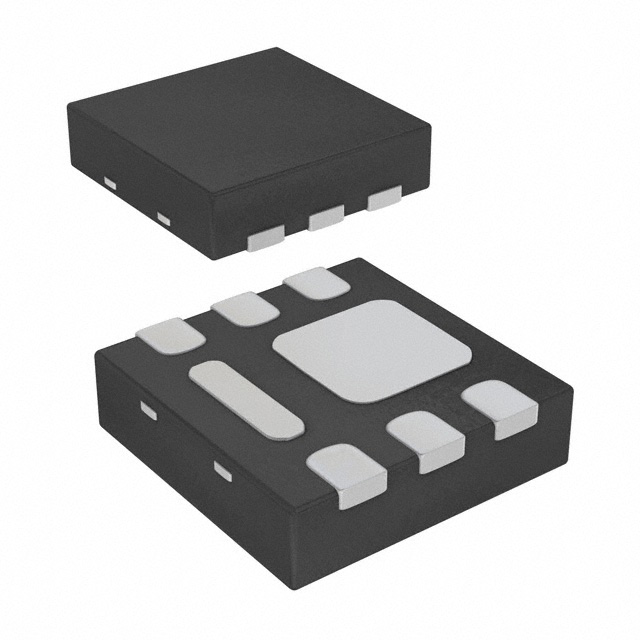

The device is housed in a compact 6-UDFN (2x2 mm) package with exposed drain pads, which enhance thermal conduction and save board space. This makes it suitable for applications like battery switches and high-side load switches in cell phones, media tablets, and other portable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) for the NTLUS3A18PZTBG is -20 V.
The maximum continuous drain current is 5.1A at 25°C ambient temperature (Note 2).
The Rds(on) is a maximum of 18mOhm at 7A drain current and 4.5V gate-to-source voltage.
The operating temperature range is -55°C to 150°C.
It is supplied in a 6-UDFN (2x2mm) exposed pad package.
Yes, this device is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
