| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
940 pcs
|
940 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

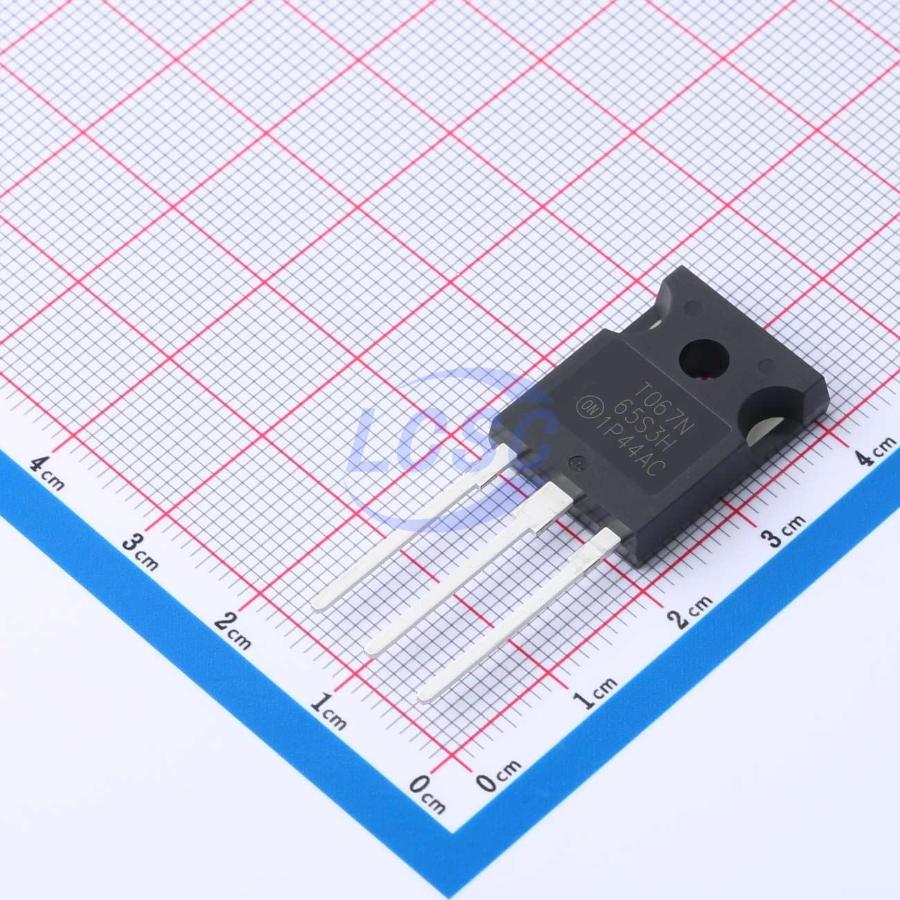

The ON Semiconductor NTHL067N65S3H is a power MOSFET designed for various applications. This N-channel device operates with a maximum drain-source voltage of 650V and can handle a continuous drain current of up to 40A.
Key electrical characteristics include a maximum on-resistance of 67mOhm at 20A and 10V, a gate charge of 80nC, and an input capacitance of 3750pF. The gate-source voltage has a maximum rating of ±30V, with a threshold voltage of 4V at 3.9mA.
This MOSFET utilizes MOSFET (Metal Oxide) technology and is designed for through-hole mounting. It operates within a temperature range of -55°C to 150°C (TJ). The component is supplied in a TO-247-3 package.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.37 | $3.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 650V.
The continuous current rating is 40A.
The maximum on-resistance is 67mOhm at 20A drain current and 10V gate-source voltage.
It is supplied in a TO-247-3 package.
The operating temperature range is -55°C to 150°C (TJ).
