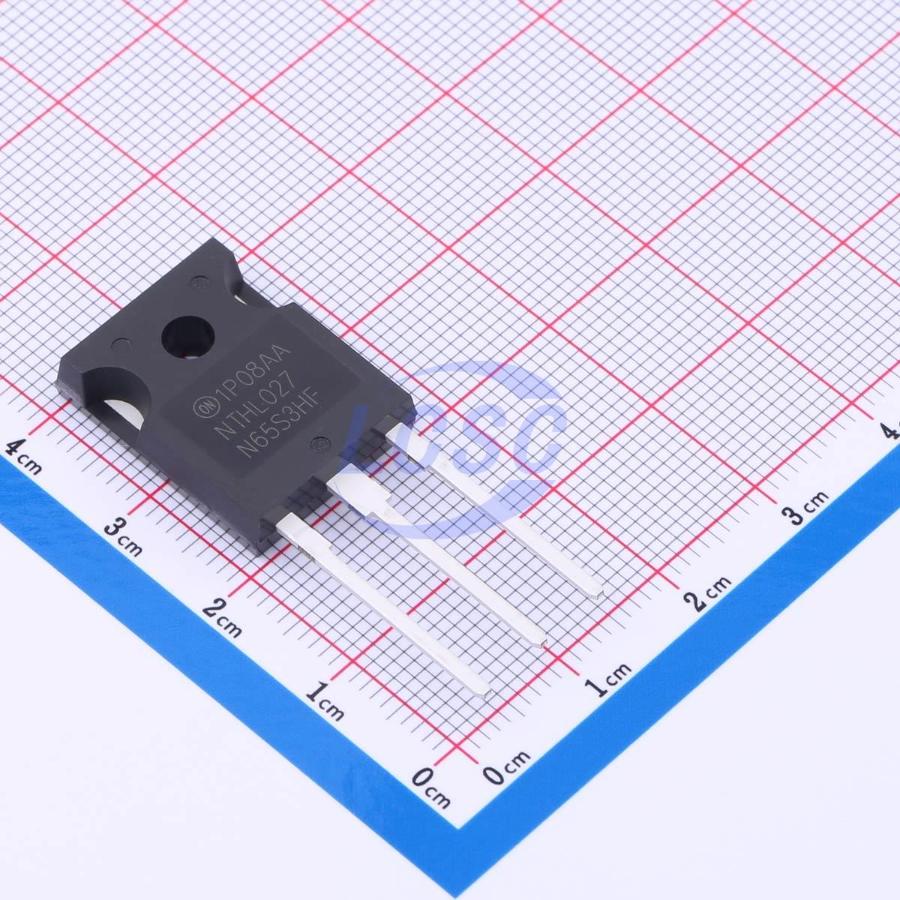

NTHL027N65S3HF The NTHL027N65S3HF is an N-Channel MOSFET from ON Semiconductor, featuring 650V drain-source voltage and 75A continuous current. It utilizes SUPERFET III and FRFET technology for high efficiency.
Mfr Part #:

NTHL027N65S3HF

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NTHL027N65S3HF is an N-Channel MOSFET from ON Semiconductor, featuring 650V drain-source voltage and 75A continuous current. It utilizes SUPERFET III and FRFET technology for high efficiency.
✓ Total Stock: 11,130 pcs
$ Price Range: $26.64

NTHL027N65S3HF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
8,550 pcs
On Request
8550 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,580 pcs
On Request
2580 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTHL027N65S3HF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Operating Temperature Range
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Rds On (Typ)
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NTHL027N65S3HF Description

Short technical summary and product information.

The ON Semiconductor NTHL027N65S3HF is a high-performance N-Channel MOSFET designed for power applications. It belongs to the SUPERFET III family, utilizing charge balance technology for excellent low on-resistance and reduced gate charge.



This device offers a drain-source voltage (Vdss) of 650V and a continuous drain current of 75A at 25°C. Key electrical characteristics include a maximum Rds On of 27.4mOhm at 35A and 10V, and a typical gate charge (Qg) of 225nC. The MOSFET operates within a temperature range of -55°C to 150°C.



Packaged in a TO-247-3 through-hole configuration, the NTHL027N65S3HF is suitable for various power systems requiring miniaturization and higher efficiency. Its optimized reverse recovery performance of the body diode can improve system reliability.



Applications include Telecom/Server Power Supplies, Industrial Power Supplies, EV Chargers, and UPS/Solar systems. The device is Pb-free and RoHS compliant.

NTHL027N65S3HF Quick Information

Product Type: MOSFET
Series: FRFET
Canonical Name: NTHL027N65S3HF N-Channel SUPERFET III FRFET MOSFET
Subcategory: N-Channel

NTHL027N65S3HF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTHL027N65S3HF Estimated Pricing

Qty Low High
1+ $26.64 $26.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTHL027N65S3HF Features

  • 650V drain-source voltage rating.
  • 75A continuous drain current.
  • Low on-resistance of 27.4mOhm.
  • Low gate charge of 225nC.
  • TO-247-3 through-hole package.

NTHL027N65S3HF Applications

  • Telecom and server power supplies.
  • Industrial power supply applications.
  • Electric vehicle chargers.
  • Uninterruptible power supplies (UPS).
  • Solar power systems.

NTHL027N65S3HF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the NTHL027N65S3HF?

The maximum drain-source voltage (Vdss) is 650 V.

What is the continuous drain current rating?

The continuous drain current is 75 A at 25°C.

What is the typical on-resistance (Rds On) for this MOSFET?

The Rds On is a maximum of 27.4 mOhm at 35A and 10V.

What is the typical gate charge (Qg)?

The typical gate charge (Qg) is 225 nC at 10V.

What is the operating temperature range?

The operating and storage temperature range is -55°C to 150°C.

What package type is the NTHL027N65S3HF supplied in?

It is supplied in a TO-247-3 package with through-hole mounting.
