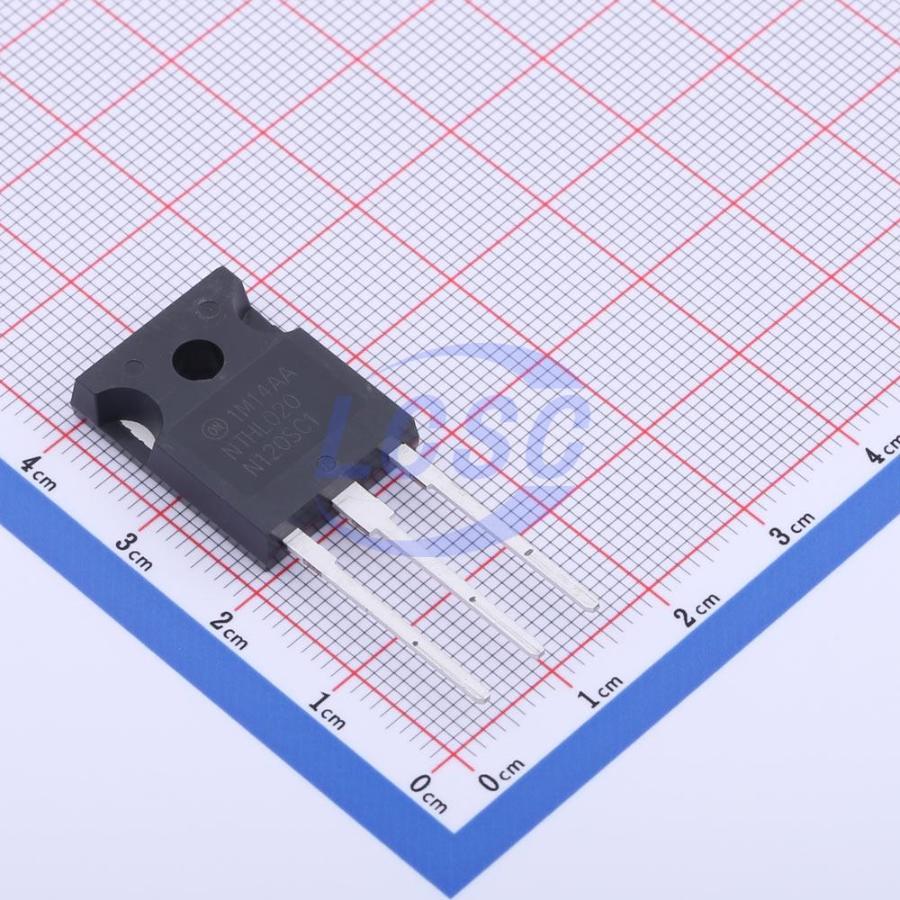

The NTHL020N120SC1 from On Semiconductor is an EliteSiC MOSFET featuring an N-Channel configuration. This device is engineered for demanding applications requiring high voltage and current handling capabilities. It boasts a maximum drain-to-source voltage (Vdss) of 1200V and a continuous drain current (Id) of 103A at 25°C case temperature.
Key electrical characteristics include a low typical on-resistance (Rds(on)) of 20 mOhm at 60A and 20V gate-source voltage, an ultra-low total gate charge (Qg(tot)) of 203 nC, and an output capacitance (Coss) of 260 pF. The device operates within a junction temperature range of -55°C to 175°C.
Packaged in a TO-247-3LD through-hole configuration, the NTHL020N120SC1 is suitable for various power electronics systems. Its Silicon Carbide technology provides superior performance compared to traditional silicon-based MOSFETs, including higher efficiency and better thermal characteristics.
Typical applications for this MOSFET include UPS systems, DC-DC converters, and boost inverters, where its robust specifications and advanced technology can significantly enhance system performance and reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $54.69 | $54.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 1200 V.
The continuous drain current at 25°C is 103 A.
The typical Rds(on) is 20 mOhm at 60A and 20V.
The operating junction and storage temperature range is -55°C to 175°C.
It is supplied in a TO-247-3LD package for through-hole mounting.
Yes, this device is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
