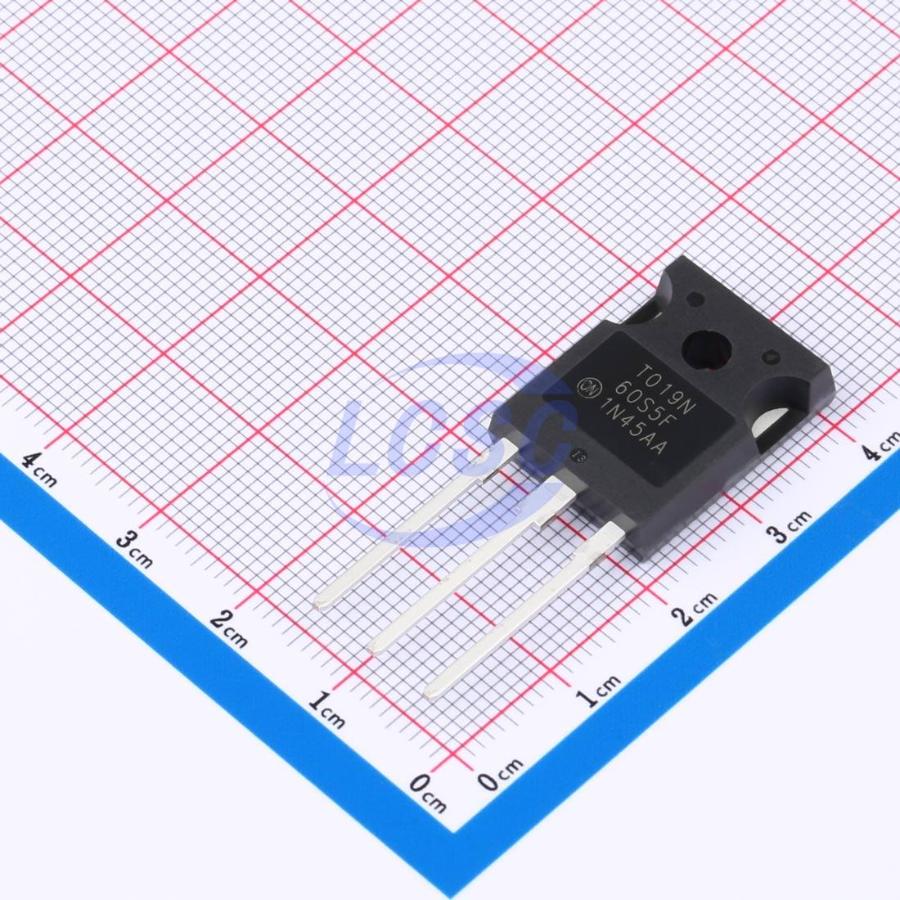

The NTHL019N60S5F is a single N-Channel MOSFET from On Semiconductor, part of the SUPERFET V FRFET series. It is designed for soft switching applications such as PSFB and LLC, offering optimized reverse recovery performance of its body diode.
Key electrical specifications include a 600V drain-to-source voltage (Vdss) and a continuous drain current of 75A at 25°C. The typical on-resistance (Rds(on)) is 15.2 mOhm at 10V gate-to-source voltage, with a maximum specified at 19mOhm @ 37.5A, 10V. It also features a gate charge (Qg) of 252 nC at 10V and an input capacitance (Ciss) of 13400 pF at 400V.
This MOSFET operates within a junction temperature range of -55°C to 150°C and has a maximum power dissipation of 568W at 25°C. It is packaged in a TO-247-3 configuration and is suitable for through-hole mounting.
Applications include Telecom / Server Power Supplies, EV Charger / UPS / Solar / Industrial Power Supplies. The device is Pb-Free, Halogen Free/BFR Free, and RoHS Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.63 | $29.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 600 V.
The continuous drain current (Id) at 25°C is 75 A.
The typical on-resistance (Rds(on)) is 15.2 mOhm at 10V gate-to-source voltage.
The NTHL019N60S5F is supplied in a TO-247-3 package.
The operating junction and storage temperature range is -55°C to 150°C.
Yes, the NTHL019N60S5F is RoHS3 Compliant.
