| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,085 pcs
|
1085 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

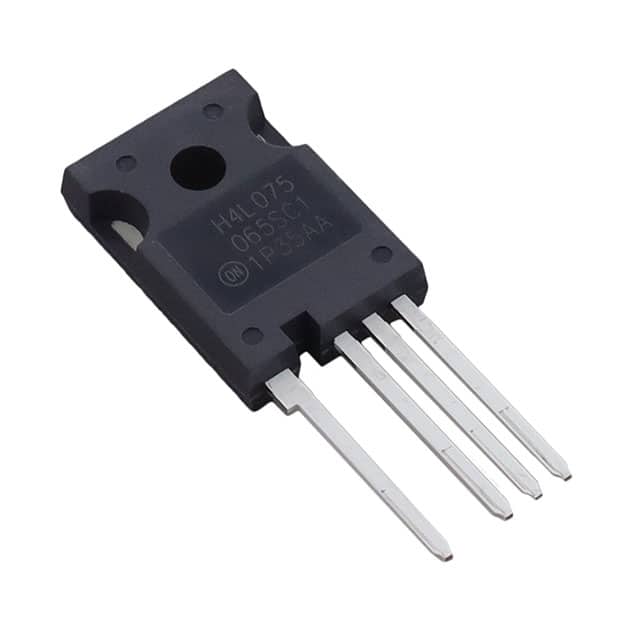

The NTH4L075N065SC1 from On Semiconductor is a high-performance Silicon Carbide (SiC) N-Channel MOSFET designed for demanding applications. It features a maximum drain-to-source voltage (VDSS) of 650V and a continuous drain current (ID) of 38A at 25°C case temperature.
This MOSFET boasts a low on-resistance (RDS(on)) of 85mOhm at 15A and 18V, with typical values of 57mOhm at 18V and 75mOhm at 15V. It has a gate charge (Qg) of 61nC and an input capacitance (Ciss) of 1196pF. The operating temperature range is -55°C to 175°C.
Packaged in a TO-247-4L through-hole configuration, the NTH4L075N065SC1 is suitable for applications such as Switching Mode Power Supplies (SMPS), solar inverters, Uninterruptable Power Supplies (UPS), and energy storage systems. It is RoHS compliant and Halide-free.
Key electrical characteristics include a gate-to-source voltage range of -8V/+22V and a gate threshold voltage (Vgs(th)) of 4.3V maximum at 5mA. The device is 100% avalanche tested, ensuring reliability under surge conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.97 | $5.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (VDSS) for the NTH4L075N065SC1 is 650V.
The typical on-resistance (RDS(on)) is 57 mOhm at VGS = 18V and 75 mOhm at VGS = 15V.
The operating junction and storage temperature range is -55°C to +175°C.
The NTH4L075N065SC1 is supplied in a TO-247-4L package.
Yes, the NTH4L075N065SC1 is RoHS3 Compliant.
