| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Flammability Rating | |
| Height | |
| Input Current | |
| Input Voltage | |
| Input Voltage Range | |
| Isolation Capacitance | |
| Isolation Resistance | |
| Isolation Voltage | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTTF | |
| Mounting Type | |
| Number of Leads | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Power Density | |
| Reflected Ripple Current | |
| Ripple & Noise | |
| Tape & Reel | |
| Tape & Reel Option | |
| Tape and Reel Option | |
| Type | |
| Voltage | |
| Voltage Set Point Accuracy | |
| Width |

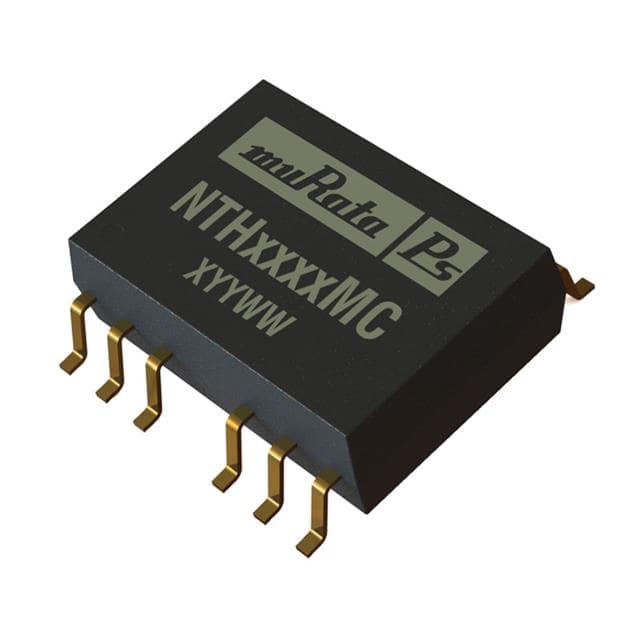

The Murata Power Solutions NTH0515MC is an isolated 2W dual output DC-DC converter from the NTH Series. It delivers +/-15V at 67mA per output (total 2W) from a nominal 5V input (4.5V to 5.5V range). The converter achieves up to 84% efficiency at full load and provides 1000VDC input/output isolation.
This surface-mount module comes in a compact 26-SMD package (17.8mm x 12.7mm x 5.8mm) with 12 leads. It features typical line regulation of 1.0%, load regulation of 3.0% (typical), and ripple & noise of 70mV p-p typical (150mV p-p max). The operating temperature range spans -40°C to 85°C, making it suitable for commercial ITE applications.
The NTH0515MC includes protections such as isolation resistance of 1GΩ min (10GΩ typ) and isolation capacitance of 37pF. It is designed for applications requiring isolated dual supply rails, such as industrial control, data communication, and test equipment.
The input voltage range is 4.5V to 5.5V DC.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant per the datasheet.
It is a 26-SMD Module with 12 leads, surface mount.
Dual outputs: +/-15V at 67mA per output.
1000VDC flash tested for 1 second.
84% typical at full load.
