| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | 1015 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Isolation Voltage | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTTF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage - Nominal | |
| Power (Watts) | |
| Ripple & Noise | |
| Storage Temperature | |
| Switching Frequency | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Set Point Accuracy | |
| Voltage Trim Range | |
| Width |

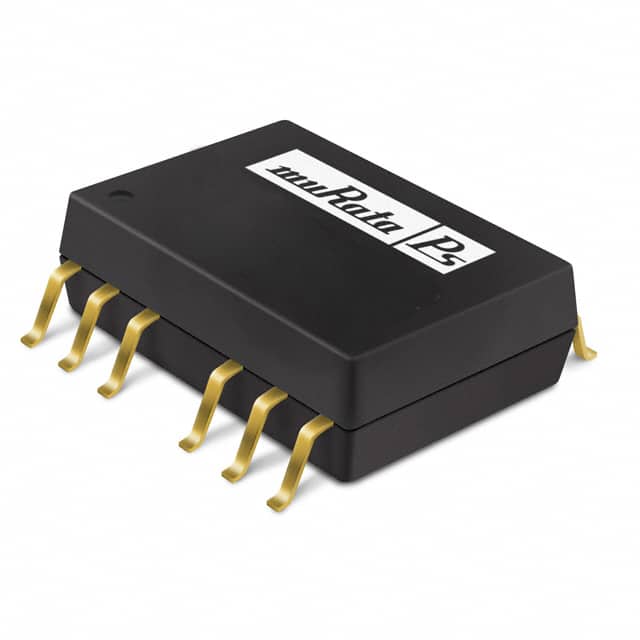

The NTFS0515MC is an isolated DC-DC converter module from Murata Power Solutions, part of the NTF series. It features a nominal 5V input (4V to 6V range) and delivers a regulated 15V output at 66mA, providing 1W of output power. The converter offers 1kV DC isolation, making it suitable for applications requiring galvanic isolation.
Key electrical characteristics include typical efficiency of 63% (60.5% min), switching frequency range of 50kHz to 700kHz, and output voltage set point accuracy of ±1% typical (±2% max). Line regulation is 0.2% typical (1% max), load regulation is 0.1% typical (1% max), and ripple and noise are 100mVp-p typical (150mVp-p max). The output voltage can be trimmed over a -10% to +10% range.
The module is designed for commercial ITE applications and operates over a temperature range of -40°C to 85°C. It is housed in a 26-SMD module with 12 leads, measuring 17.8mm x 12.7mm x 6.6mm, and is surface mountable. The device has a calculated MTTF of 869 kHrs per MIL-HDBK-217F (ground benign, 25°C).
The input voltage range is 4V to 6V, with a nominal of 5V.
The output voltage is 15V nominal, and the output current is 66mA.
The isolation voltage is 1 kVDC.
The operating temperature range is -40°C to 85°C.
The package is a 26-SMD Module with 12 leads, surface mount.
Yes, the datasheet indicates RoHS compliance (RoHS3 compliant).
Typical efficiency is 63%, with a minimum of 60.5%.
