| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

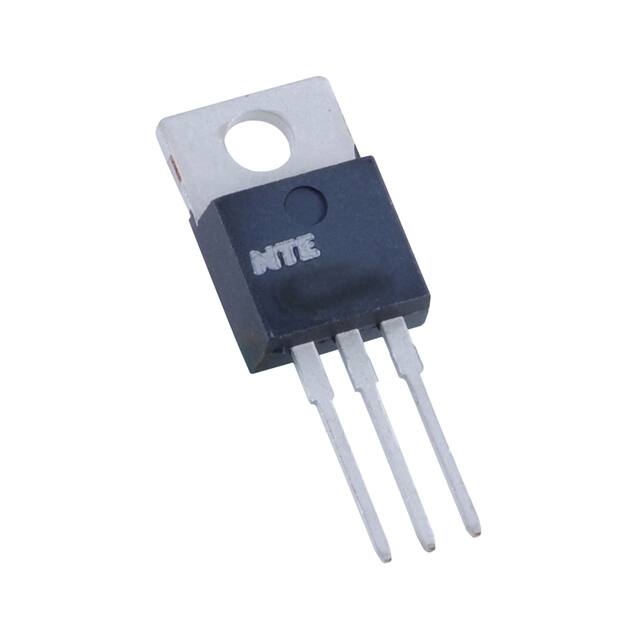

The NTE6244 is a fast recovery rectifier diode array manufactured by NTE Electronics. It consists of two diodes in a common anode configuration, making it suitable for various rectification and switching applications. The device is rated for a forward current of 5A at 200V with a typical forward voltage of 975mV at 8A. The reverse recovery time is specified as 35ns, indicating fast switching capability. The operating temperature range is -65°C to 150°C. The diode array is housed in a through-hole TO-220-3 package, which is suitable for easy mounting on PCBs. The package is TO-220, a standard for power devices. Compliance with RoHS and REACH is indicated but unverified. The part is commonly used in power supply circuits, freewheeling diodes, and other applications requiring fast recovery diodes.
The NTE6244 is rated for 200V reverse voltage (based on current rating test condition).
The NTE6244 has a forward current rating of 5A at 200V.
The typical forward voltage is 975mV at 8A.
The reverse recovery time is 35ns.
The NTE6244 is available in a through-hole TO-220-3 package.
