| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage (Vf) @ 60 A | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage (Vrrm) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The NTE6044 is a standard recovery rectifier diode manufactured by NTE Electronics. It offers a maximum reverse voltage (VRRM) of 1000V and an average rectified current (Io) of 60A. The forward voltage is specified at 1.4V maximum when tested at 60A forward current. The device has a reverse recovery time greater than 500ns, classifying it as a standard recovery diode.

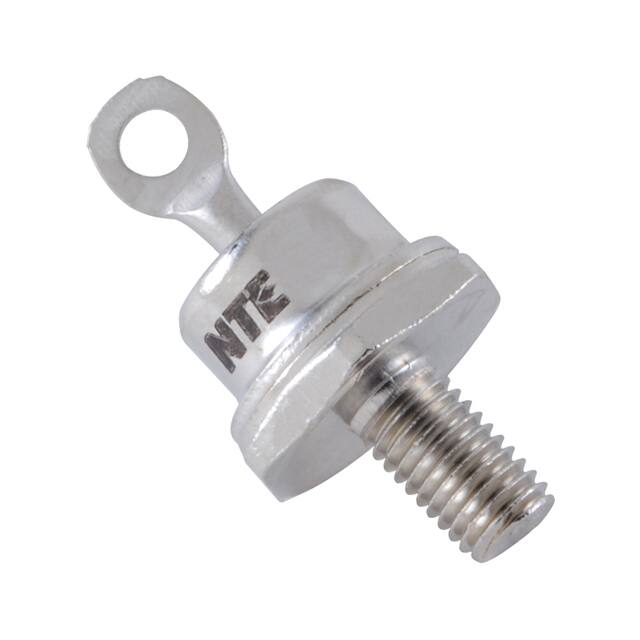

This diode is housed in a DO-203AA / DO-5 stud mount package, providing robust mechanical mounting and thermal performance for high current applications. The operating temperature range spans from -65°C to 175°C, suitable for demanding environments. The technology is standard silicon rectifier.
Typical applications include power supply rectification, motor drives, battery chargers, and other industrial equipment requiring high voltage and current handling. The stud mount package allows secure attachment to heatsinks for efficient heat dissipation.
The maximum repetitive reverse voltage (VRRM) is 1000V.
The average rectified current (Io) is 60A.
The maximum forward voltage is 1.4V at 60A forward current.
The reverse recovery time (trr) is greater than 500ns (standard recovery).
The diode is available in DO-203AA, DO-5, and stud mount packages with supplier device package DO-5.
