| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |

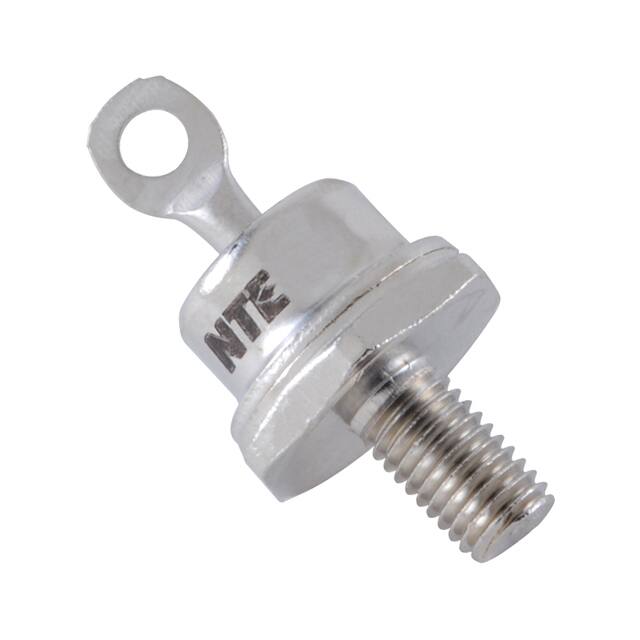

The NTE6009 is a standard recovery diode designed for general purpose rectification applications. With a maximum reverse voltage of 400V and an average rectified current rating of 40A, it is suitable for moderate voltage and current requirements.
The diode features a fast recovery time of 400 ns, enabling efficient switching in circuits that require rapid turn-off. The maximum forward voltage drop is 1.4V at a forward current of 40A, contributing to acceptable conduction losses.
The component is housed in a rugged DO-5 (DO-203AA) stud mount package, ensuring reliable thermal and electrical performance. The operating junction temperature range is -65°C to 160°C, allowing use in a variety of environments.
400V.
40A.
1.4V at 40A.
400 ns.
DO-203AA (DO-5) stud mount package.
-65°C to 160°C.
Stud mount.
