| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

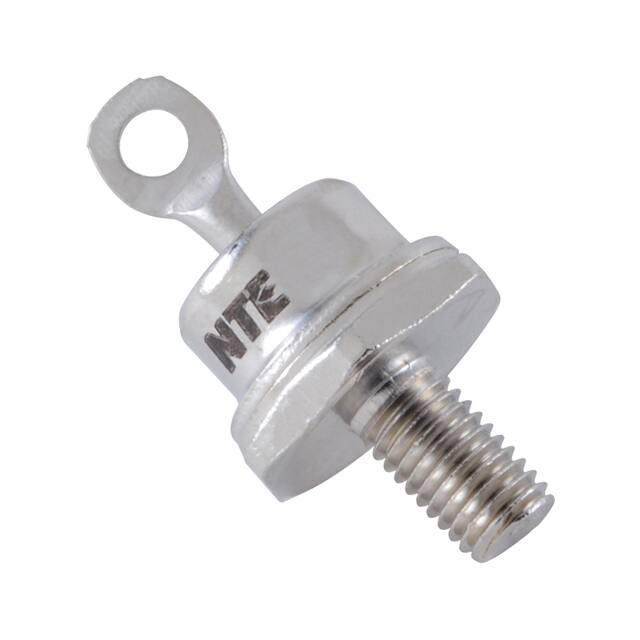

The NTE5998 is a general purpose standard recovery rectifier diode designed for high current rectification applications. It features an average rectified forward current of 40A and a forward voltage of 1.3V at 40A. The device is rated for reverse voltage up to 800V and operates over a temperature range of -65°C to 190°C.
This diode uses standard recovery technology with a reverse recovery time greater than 500ns, making it suitable for line frequency rectification and power supply applications where fast switching is not required. The DO-5 (DO-203AA) stud mount package allows for secure mechanical mounting and efficient heat transfer to a heatsink.
The NTE5998 is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in power supplies, battery chargers, welding equipment, and other industrial rectification circuits.
The NTE5998 has an average rectified forward current rating of 40A.
The forward voltage is 1.3V at a test condition of 40A.
The NTE5998 is available in a DO-203AA, DO-5, Stud mount package.
The operating temperature range is -65°C to 190°C.
The NTE5998 is listed as RoHS3 Compliant, though this data is unverified.
