| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage (Vf) | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

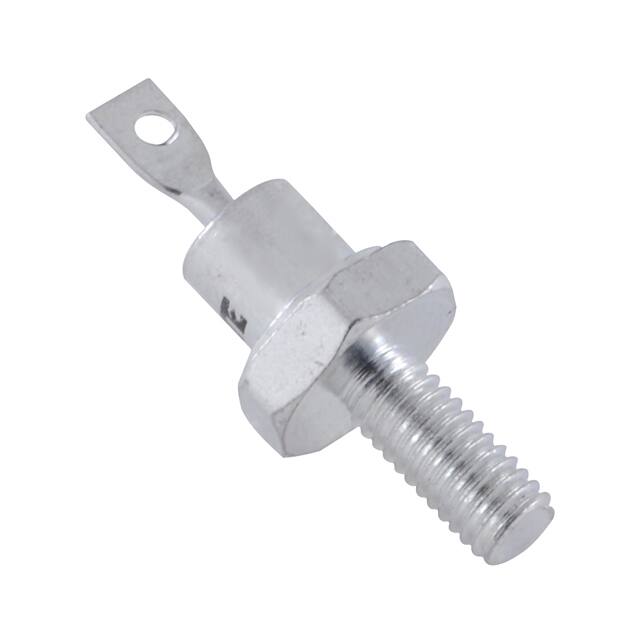

The NTE5923 from NTE Electronics is a standard recovery rectifier diode designed for general purpose power rectification applications. It is rated for a maximum DC reverse voltage of 500V and can handle an average rectified current of 20A. The forward voltage is specified at 1.23V maximum at a test current of 63A.
The diode uses standard silicon technology and offers a reverse recovery time greater than 500ns, making it suitable for line frequency applications. It operates over a wide temperature range of -65°C to 175°C.
The device is housed in a stud mount DO-203AA/DO-4 package. The stud mount design allows for efficient heat sinking through chassis mounting. The supplier device package is DO-4, providing a robust and reliable mechanical interface for high current applications.
The maximum DC reverse voltage is 500V.
The average rectified current is 20A.
The forward voltage is 1.23V maximum at 63A.
The diode has standard recovery speed with reverse recovery time greater than 500ns at 200mA.
The package is DO-203AA/DO-4 stud mount.
The operating temperature range is -65°C to 175°C.
The mounting type is stud mount.
