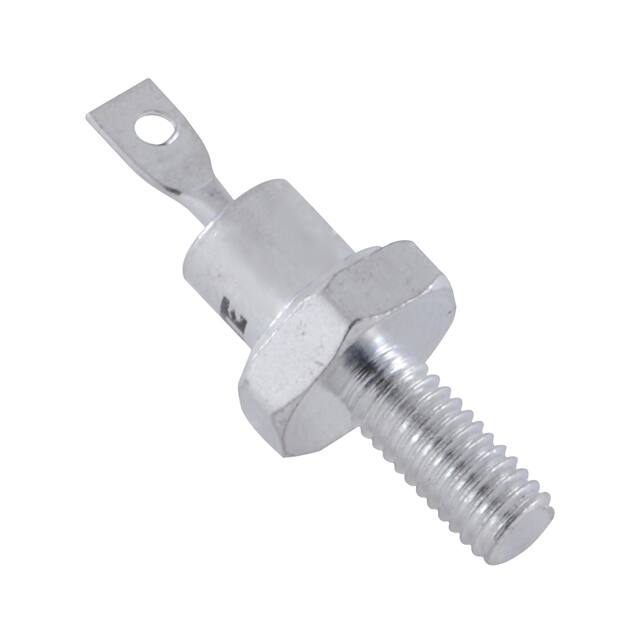

NTE5916 The NTE5916 is a 200V, 20A general purpose rectifier diode from NTE Electronics. It features a DO-4 stud mount package with standard recovery.
Mfr Part #:

NTE5916

Available from 1 distributors
Mfr Name: NTE Electronics
NTE Electronics
The NTE5916 is a 200V, 20A general purpose rectifier diode from NTE Electronics. It features a DO-4 stud mount package with standard recovery.
✓ Total Stock: 2 pcs

NTE5916 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTE5916 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Operating Temperature
Speed
Supplier Device Package
Technology
Voltage
View Similar Products (0)

NTE5916 Description

Short technical summary and product information.

The NTE5916 is a standard recovery rectifier diode designed for general purpose applications. It has a maximum reverse voltage of 200V and an average rectified current of 20A. The forward voltage is 1.23V at 63A. It is a stud mount device housed in a DO-203AA (DO-4) package. The operating temperature range is -65°C to 175°C. This diode is suitable for power supply rectification, battery charging, and other general purpose rectifier applications where standard recovery is acceptable. The stud mount allows for secure attachment to heatsinks.

NTE5916 Quick Information

Product Type: Rectifier Diode
Canonical Name: General Purpose Rectifier Diode, 200V, 20A, Standard Recovery, DO-4
Subcategory: Single Diodes

NTE5916 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTE5916 Features

  • 200V maximum reverse voltage rating.
  • 20A average rectified current capability.
  • 1.23V forward voltage at 63A.
  • Standard recovery >500ns, >200mA.
  • DO-4 stud mount package for heat dissipation.

NTE5916 Applications

  • General purpose power rectification circuits.
  • Battery charging power supplies.
  • AC to DC conversion in industrial equipment.

NTE5916 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the NTE5916?

The maximum reverse voltage is 200V.

What is the average rectified current rating?

The average rectified current rating is 20A.

What is the forward voltage drop?

The forward voltage is 1.23V at 63A.

What is the reverse recovery characteristic?

The reverse recovery is standard recovery greater than 500ns, greater than 200mA.

What package does the NTE5916 come in?

It comes in a DO-203AA (DO-4) stud mount package.

What is the operating temperature range?

The operating temperature range is -65°C to 175°C.

NTE5916 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
NTE5922
NTE5922
NTE Electronics
NTE5922 is a 500V, 20A standard recovery rectifier diode in a DO-4 stud mount package.
View Part
NTE5912
NTE5912
NTE Electronics
The NTE5912 is a general purpose rectifier diode from NTE Electronics with a DC reverse voltage rating of 50V and average rectified current of 20A. It features a stud mount DO-4 package and operates over -65°C to 175°C.
View Part
NTE5924
NTE5924
NTE Electronics
Standard rectifier diode rated at 600V and 20A in a DO-4 stud mount package.
View Part
