| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage (VR) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |
The NTE5915 is a general purpose rectifier diode from NTE Electronics, designed for standard recovery applications. It features a reverse recovery time greater than 500 ns, making it suitable for low-speed switching and rectification.
This diode has a maximum reverse voltage rating of 100 V and a nominal average forward current of 20 A. The typical forward voltage is 1.23 V at a forward current of 63 A. It operates over a wide temperature range from -65°C to 175°C, ensuring reliability in harsh environments.

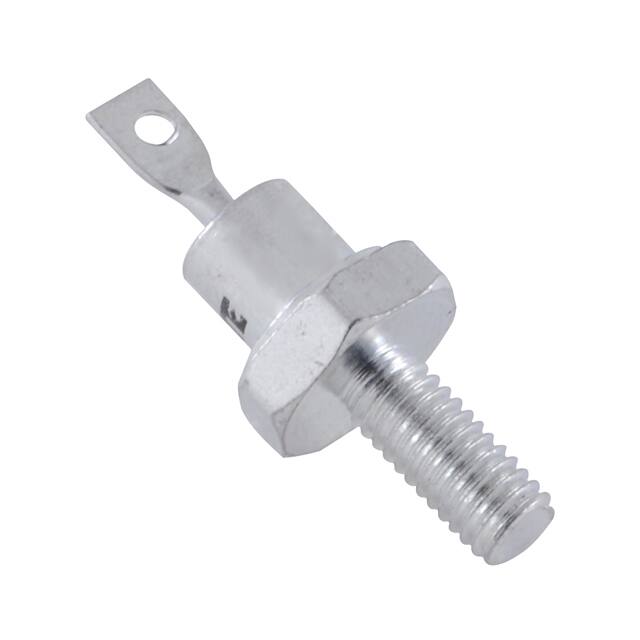

The NTE5915 is housed in a DO-203AA (DO-4) stud mount package, which allows for secure mounting via a threaded stud. This package is commonly used in power rectification applications where heat dissipation is important.
The component is RoHS3 compliant, REACH unaffected, and has an MSL rating of Level 1 (unlimited). These compliance ratings indicate environmental and handling standards.
The maximum reverse voltage (Vr) is 100 V.
The nominal average forward current (IF) is 20 A.
The typical forward voltage (Vf) is 1.23 V at a forward current of 63 A.
The maximum reverse recovery time (trr) is greater than 500 ns (standard recovery).
The NTE5915 is available in a DO-203AA (DO-4) stud mount package.
The operating temperature range is -65°C to 175°C.
Yes, the NTE5915 is listed as RoHS3 compliant.
