| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

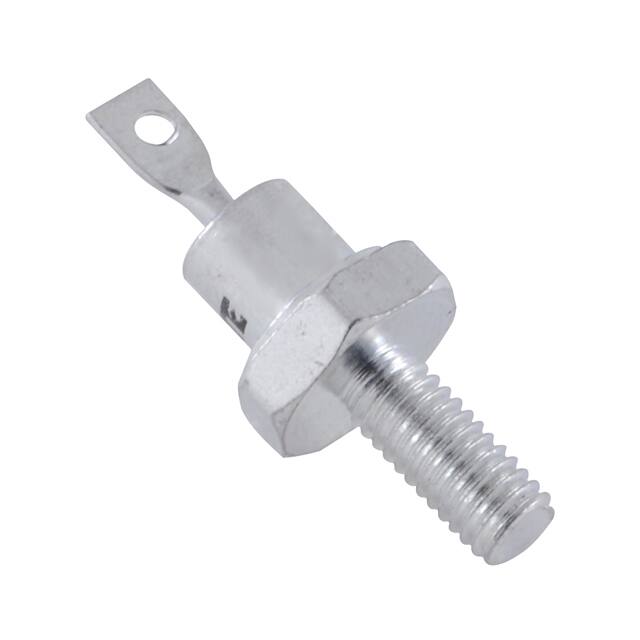

The NTE5903 is a standard recovery rectifier diode designed for general purpose power rectification applications. It features a maximum reverse voltage (VRRM) of 500V and an average rectified current of 16A. The forward voltage is specified at 1.23V when conducting 50A, indicating a typical forward drop suitable for medium-current circuits. This diode exhibits standard recovery characteristics, with a reverse recovery time greater than 500ns at over 200mA, making it appropriate for line-frequency (50/60 Hz) rectification where fast switching is not required. The device is packaged in a DO-4 stud mount (also known as DO-203AA) package, which allows for secure mounting to a heatsink for thermal management. The operating temperature range spans from -65°C to 175°C, enabling use in demanding industrial environments. With its rugged stud mount construction and high current rating, the NTE5903 is well suited for power supplies, battery chargers, and other AC-to-DC conversion circuits.
500V
16A
1.23 V at 50A
Standard recovery (>500 ns, >200 mA)
DO-4 stud mount (DO-203AA)
Stud mount
-65°C to 175°C
