| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage (Vrrm) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The NTE5900 is a standard recovery rectifier diode designed for general purpose power rectification. It features a reverse voltage rating of 400V and an average forward current of 16A.
Electrical characteristics include a maximum forward voltage of 1.23V at 50A and a reverse recovery time greater than 500ns at 200mA, making it suitable for applications where fast switching is not required. The device operates over a wide temperature range from -65°C to 175°C.

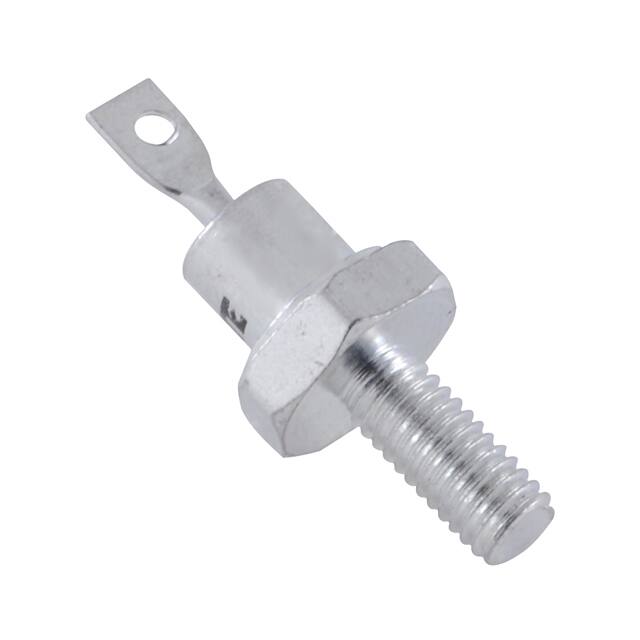

The diode is housed in a DO-4 (DO-203AA) stud mount package, allowing for secure mounting to heatsinks for thermal management. The stud mount design facilitates easy installation in power circuits.
400V.
16A.
1.23V maximum at 50A.
Greater than 500ns at 200mA.
-65°C to 175°C.
DO-4 (DO-203AA) stud mount.
Yes, RoHS3 compliant (unverified).
