| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

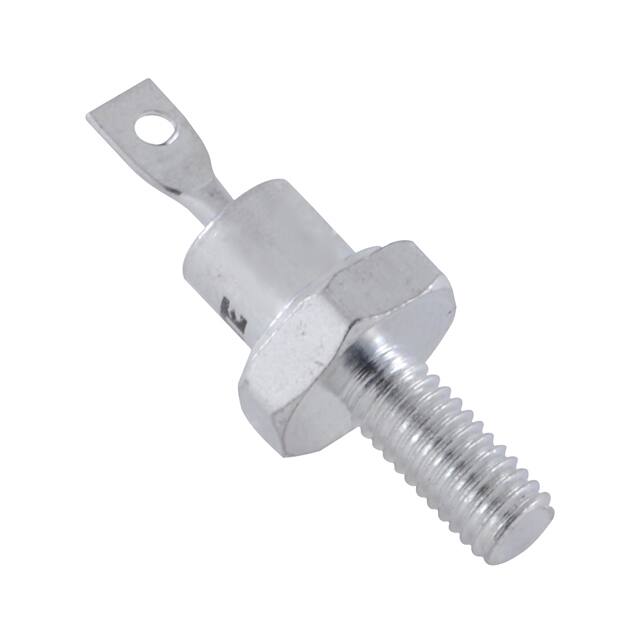

The NTE5887 is a general purpose standard recovery rectifier diode manufactured by NTE Electronics. It is designed for applications requiring high voltage and moderate current rectification.
Key electrical specifications include a maximum reverse voltage (VRRM) of 800V and a maximum average forward current (IF(AV)) of 12A. The typical forward voltage is 1.26V at a forward current of 38A. This diode features a standard recovery time greater than 500ns, making it suitable for line frequency applications where fast switching is not required.
The device is packaged in a DO-203AA (DO-4) stud mount package, which allows for secure mounting to a heatsink for thermal management. The operating temperature range is -65°C to 175°C.
The maximum reverse voltage (VRRM) is 800V.
The maximum average forward current (IF(AV)) is 12A.
The typical forward voltage is 1.26V at a forward current of 38A.
The maximum reverse recovery time is greater than 500ns.
The NTE5887 is available in a DO-203AA (DO-4) stud mount package.
The operating temperature range is -65°C to 175°C.
