| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The NTE5869 is a standard recovery rectifier diode from NTE Electronics designed for general-purpose rectification applications. It offers a 1kV reverse voltage rating and a 6A average rectified current capability. The forward voltage is specified as 1.1V at a forward current of 19A.
The device features standard recovery characteristics with a reverse recovery time greater than 500ns at a test current above 200mA, making it suitable for low-frequency rectification where fast switching is not required. The device uses standard silicon junction technology.

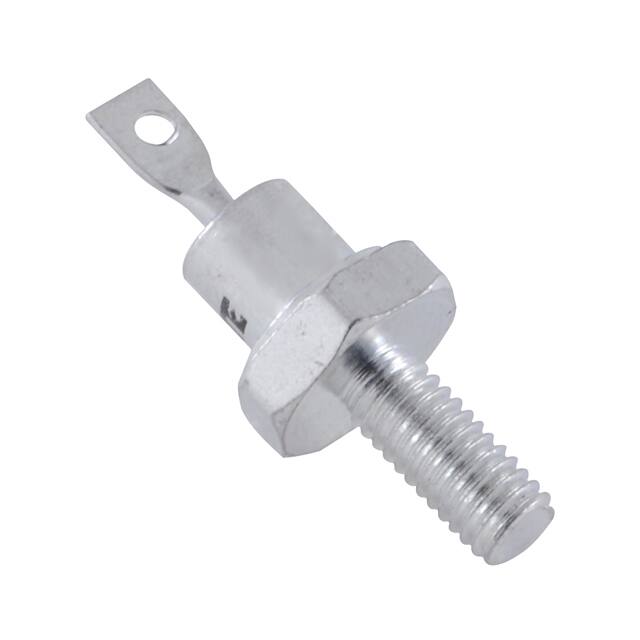

The NTE5869 is housed in a DO-203AA (DO-4) stud mount package, allowing for secure mechanical mounting and efficient thermal transfer. The operating temperature range spans from -65°C to 175°C. The stud mount configuration is ideal for connection to heat sinks in power supply and industrial equipment designs.
The forward voltage is 1.1V at a forward current of 19A.
The average rectified current is 6A.
The reverse recovery time is greater than 500ns at a forward current above 200mA (standard recovery category).
The NTE5869 is available in a DO-203AA (DO-4) stud mount package.
The operating temperature range is -65°C to 175°C.
