Mfr Part #:

NTE5313

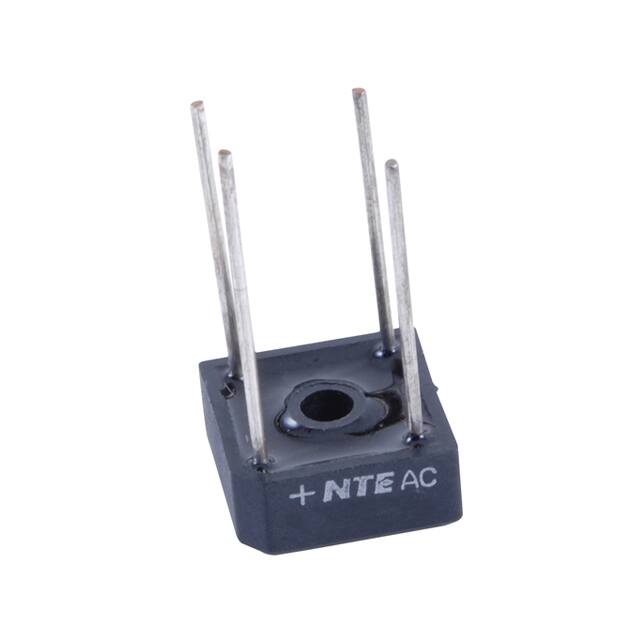

NTE5313 is a single phase bridge rectifier from NTE Electronics. It features a peak repetitive reverse voltage of 200V and an average rectified forward current of 10A.

✓ Total Stock: 3 pcs

NTE5313 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	3 pcs On Request	3 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

NTE5313 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Diodes - Bridge Rectifiers
Manufacturer Name	NTE Electronics
Current	10 A
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 125°C (TJ)
Technology	Standard
Voltage	200 V

View Similar Products (0)

NTE5313 Description

Short technical summary and product information.

The NTE5313 is a single phase bridge rectifier diode manufactured by NTE Electronics. It is designed for converting alternating current (AC) to direct current (DC) in power supply applications.

Key electrical specifications include a peak repetitive reverse voltage (V_RRM) of 200V and an average rectified forward current (I_F(AV)) of 10A at a reverse voltage of 200V. The device uses standard silicon technology and operates over a junction temperature range of -55°C to 125°C.

The NTE5313 is housed in a 4-Square package with through hole mounting, suitable for PCB assembly. It is RoHS3 compliant and has an MSL of 1 (unlimited).

NTE5313 Quick Information

Product Type: Bridge Rectifier

Canonical Name: NTE5313 Single Phase Bridge Rectifier, 200V V_RRM, 10A I_F(AV), Through Hole, 4-Square

Subcategory: Single Phase Bridge Rectifier

NTE5313 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

NTE5313 Features

Single phase bridge rectifier configuration.
Rated for 200V peak repetitive reverse voltage.
Supports 10A average rectified forward current.
Through hole mounting in 4-Square package.
Operates from -55°C to 125°C junction temperature.

NTE5313 Applications

AC to DC conversion in power supplies.
General purpose rectification circuits.
Industrial and consumer electronics equipment.

NTE5313 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the peak repetitive reverse voltage (V_RRM) of NTE5313?

The peak repetitive reverse voltage is 200V.

What is the average rectified forward current rating of NTE5313?

The average rectified forward current is 10A at a reverse voltage of 200V.

What is the operating junction temperature range for NTE5313?

The operating junction temperature range is -55°C to 125°C.

What package type does NTE5313 use?

The NTE5313 is available in a 4-Square package with through hole mounting.

Is NTE5313 RoHS compliant?

RoHS compliance is indicated as RoHS3 compliant, but this is unverified.

NTE5313 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

NTE5318

NTE Electronics

The NTE5318 is a single-phase bridge rectifier with 200V peak repetitive reverse voltage and 10A average rectified output current. Housed in a through-hole 4-ESIP package.

View Part
