The NTE5220A is a single Zener diode from NTE Electronics designed for voltage regulation and reference applications. It features a nominal Zener voltage of 100V with a tolerance of ±5%, making it suitable for circuits requiring a stable 100V reference.
This diode is rated for a power dissipation of 10W, allowing it to handle moderate power levels in voltage clamping and regulation circuits. The maximum Zener impedance (Zzt) is 40 Ω, which influences the voltage regulation accuracy under varying current conditions.

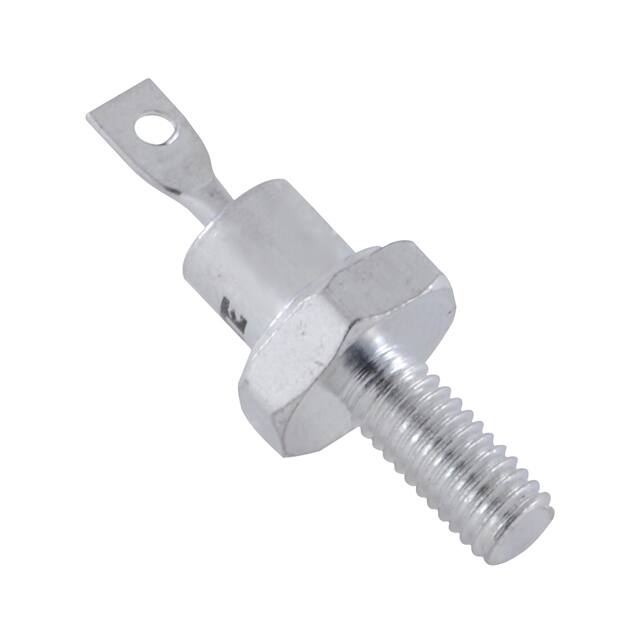

The device is housed in a DO-203AA (DO-4) stud mount package, designed for chassis mounting. This package provides robust mechanical support and efficient heat transfer to a heatsink or chassis. The operating temperature range spans from -65°C to 175°C, supporting use in harsh thermal environments.
The NTE5220A has a nominal Zener voltage of 100V.
The NTE5220A is rated for 10W power dissipation.
The Zener voltage tolerance is ±5%.
The NTE5220A is available in a DO-203AA (DO-4) stud mount package.
The operating temperature range is -65°C to 175°C.
The maximum Zener impedance (Zzt) is 40 Ω.
