| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure (dB Typ @ f) | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Voltage |

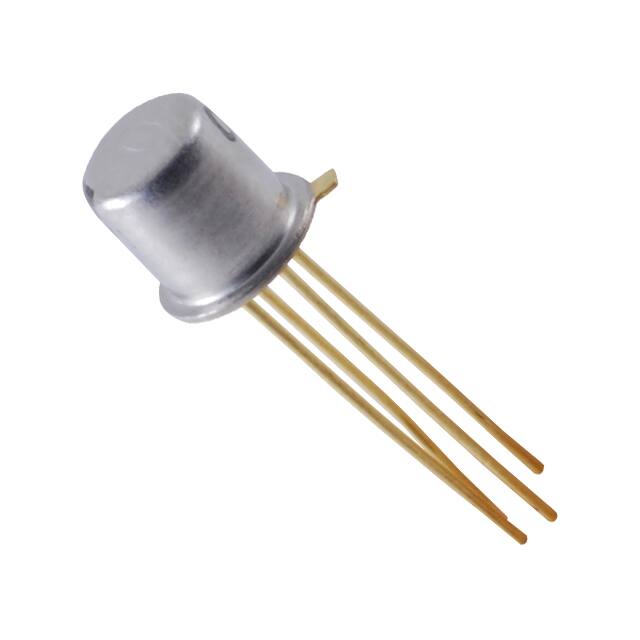

The NTE395 is a PNP bipolar junction transistor (BJT) from NTE Electronics, specifically designed for RF applications. It features a maximum operating voltage of 25V and a continuous current capability of 50mA, with a power dissipation of 225mW. This transistor is capable of operating at frequencies up to 2.3GHz, making it suitable for various high-frequency circuits.
Key electrical characteristics include a typical gain of 16dB and a minimum DC current gain (hFE) of 20 at 10mA and 10V. The noise figure is typically between 2.5dB and 4dB across a frequency range of 200MHz to 800MHz. The operating junction temperature can reach up to 200°C.
Packaged in a TO-72 (TO-206AF, TO-72-4 Metal Can) configuration, the NTE395 is designed for through-hole mounting. Its specifications make it a viable component for RF amplification and signal processing tasks in electronic designs requiring high-frequency performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating voltage for the NTE395 transistor is 25V.
The NTE395 transistor can handle a maximum continuous current of 50mA.
The NTE395 RF transistor operates at frequencies up to 2.3GHz.
The NTE395 transistor is supplied in a TO-72 package.
The NTE395 transistor is designed for through-hole mounting.
The typical gain of the NTE395 transistor is 16dB.
The operating temperature for the NTE395 is up to 200°C (TJ).
