| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current (Maximum) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Junction Temperature Range | |
| Operating Temperature | |
| Package / Case | |
| Power | |
| Power Dissipation (Maximum @ TC=25 °C) | |
| Power Dissipation (Maximum) @ TA=25°C | |
| Standard Package Qty | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Supplier Package | |
| Thermal Resistance (Nominal @ Junction-to-Ambient) | |
| Thermal Resistance (Nominal @ Junction-to-Case) | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage | |
| Voltage - Maximum | |
| current (Maximum @ Peak (Note 1) | |
| voltage (Maximum @ VCEV) | |
| voltage (Maximum @ VEBO) |
The NTE379 is a silicon NPN transistor manufactured by NTE Electronics, designed for high-voltage, high-speed power switching in inductive circuits where fall time is critical. This device is suitable for 115V and 220V switch-mode applications, including switching regulators, inverters, motor controls, solenoid/relay drivers, and deflection circuits.
Key electrical specifications include a collector-emitter voltage (VCEO(sus)) of 400V and a continuous collector current of 12A. It also features a peak collector current of 24A. The transistor operates with a DC current gain (hFE) of 8 minimum at 5A collector current and 5V collector-emitter voltage. The Vce saturation is a maximum of 3V at 3A base current and 12A collector current. Its frequency capability is up to 4MHz.
With a maximum power dissipation of 2W at an ambient temperature of 25°C and 100W at a case temperature of 25°C, the NTE379 is designed for robust performance. It operates within a junction temperature range of -65°C to +150°C. The thermal resistance from junction to case is 1.25°C/W, and from junction to ambient is 62.5°C/W.

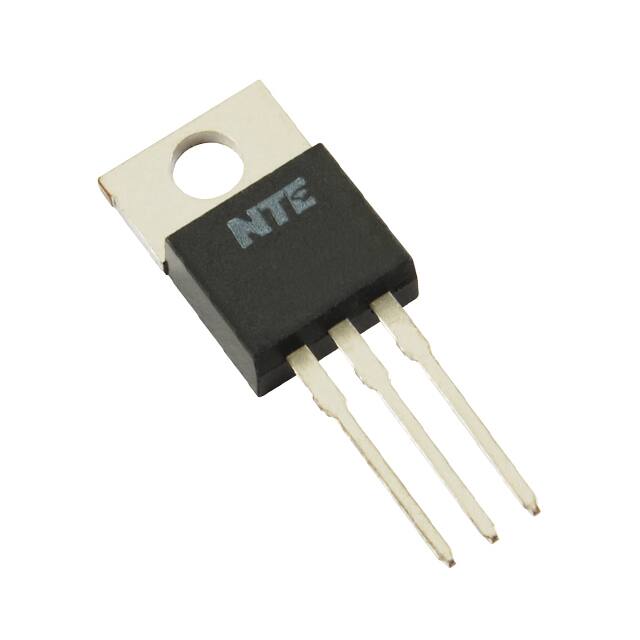

The NTE379 is housed in a TO-220-3 package and utilizes through-hole mounting. Its operating temperature range is -65°C to +150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO(sus)) for the NTE379 is 400V.
The NTE379 has a continuous collector current rating of 12A.
The NTE379 is supplied in a TO-220-3 package.
The operating junction temperature range for the NTE379 is -65°C to +150°C.
The RoHS Status for the NTE379 is listed as RoHS3 Compliant.
