NTE376 The NTE376 is an NPN transistor from NTE Electronics designed for TV power supply driver and audio output applications. It features a 300V breakdown voltage and a 200mA collector current.
Mfr Part #:

NTE376

Available from 1 distributors
Mfr Name: NTE Electronics
NTE Electronics
The NTE376 is an NPN transistor from NTE Electronics designed for TV power supply driver and audio output applications. It features a 300V breakdown voltage and a 200mA collector current.
✓ Total Stock: 4 pcs
$ Price Range: $0.99

NTE376 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTE376 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Mounting Type
Operating Temperature
Power
Supplier Device Package
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

NTE376 Description

Short technical summary and product information.

The NTE376 is a silicon NPN transistor manufactured by NTE Electronics, suitable for applications such as TV power supply drivers and audio output stages. It offers a high collector-emitter breakdown voltage of 300V and a maximum collector current of 200mA.



Key electrical characteristics include a DC current gain (hFE) ranging from 40 to 200 at 50mA and 10V, and a current gain-bandwidth product (fT) of at least 60MHz. The collector-emitter saturation voltage (VCE(sat)) is a maximum of 1.5V at 100mA collector current and 10mA base current. The base-emitter voltage (VBE) is typically 0.66V at 50mA collector current.

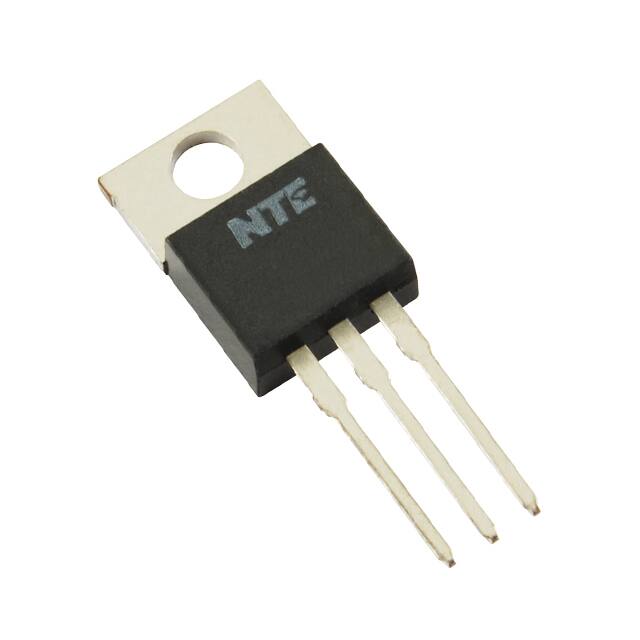

This transistor is housed in a TO-220 package and is designed for through-hole mounting. It has a power dissipation rating of 15W and an operating junction temperature up to 150°C. The storage temperature range is from -45°C to +150°C.

NTE376 Quick Information

Product Type: NPN Transistor
Canonical Name: NPN Transistor NTE376
Subcategory: Single

NTE376 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTE376 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTE376 Features

  • 300V collector-emitter breakdown voltage.
  • 200mA maximum collector current.
  • 15W maximum power dissipation.
  • NPN transistor type.
  • TO-220 package for through-hole mounting.

NTE376 Applications

  • Used in high-voltage switching circuits
  • Suitable for power amplification applications
  • Ideal for electronic circuits requiring high voltage
  • Mounts easily in through-hole designs

NTE376 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage for the NTE376?

The NTE376 has a maximum collector-emitter voltage of 300V.

What is the maximum collector current of the NTE376 transistor?

The NTE376 transistor can handle a maximum collector current of 200mA.

What is the power dissipation rating for the NTE376?

The NTE376 has a power dissipation rating of 15W.

What is the operating junction temperature for the NTE376?

The NTE376 operates at a maximum junction temperature of 150°C.

What type of transistor is the NTE376?

The NTE376 is an NPN transistor.

What package is the NTE376 supplied in?

The NTE376 is supplied in a TO-220-3 package.
