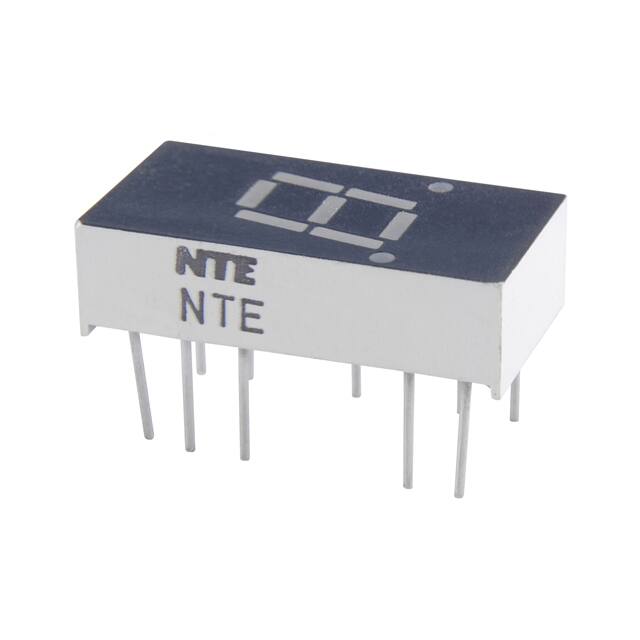

NTE3058 The NTE3058 is a single-digit, orange 7-segment LED display module from NTE Electronics. It operates at 2.1V and 10mA, with a typical luminous intensity of 2mcd.
Mfr Part #:

NTE3058

Available from 1 distributors
Mfr Name: NTE Electronics
NTE Electronics
The NTE3058 is a single-digit, orange 7-segment LED display module from NTE Electronics. It operates at 2.1V and 10mA, with a typical luminous intensity of 2mcd.
✓ Total Stock: 44 pcs
$ Price Range: $0.99

NTE3058 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTE3058 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Common Pin
Current
Digit
Display Type
Lead Spacing
Millicandela Rating
Number of Characters
Power Dissipation (Max)
Voltage
Wavelength
Weight
View Similar Products (0)

NTE3058 Description

Short technical summary and product information.

The NTE3058 is a 7-segment LED display module manufactured by NTE Electronics. This component features a single character display in a vibrant orange color, making it suitable for various numeric display applications.



Key electrical specifications include a typical forward voltage of 2.1V at 10mA, a maximum power dissipation of 75mW, and a luminous intensity of 2mcd. The display operates at a wavelength of 630nm. The module is housed in a 14-DIP package with 10 leads, measuring 0.738 inches high by 0.386 inches wide by 0.200 inches deep.



This display module is designed for applications requiring clear and bright numeric readouts. Its standard DIP packaging facilitates easy integration into breadboard or PCB designs. The orange color provides good visibility in various lighting conditions.

NTE3058 Quick Information

Product Type: LED Display Module
Canonical Name: NTE3058 Orange 7-Segment LED Display Module
Subcategory: 7-Segment

NTE3058 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTE3058 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTE3058 Features

  • Single digit orange 7-segment LED display.
  • Operates at 2.1V forward voltage.
  • 10mA typical operating current.
  • 2mcd typical luminous intensity.
  • 14-DIP package for easy mounting.

NTE3058 Applications

  • Ideal for numeric displays.
  • Suitable for status indicators.
  • Used in electronic equipment.
  • Component for control panels.

NTE3058 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the NTE3058?

The NTE3058 operates at 2.1V.

What is the typical current for the NTE3058 LED display?

The typical current for the NTE3058 is 10mA.

What color is the NTE3058 display module?

The NTE3058 display module is orange.

What package type is the NTE3058 LED display in?

The NTE3058 is in a 14-DIP package with 10 leads.

What is the luminous intensity of the NTE3058?

The NTE3058 has a luminous intensity of 2mcd.
