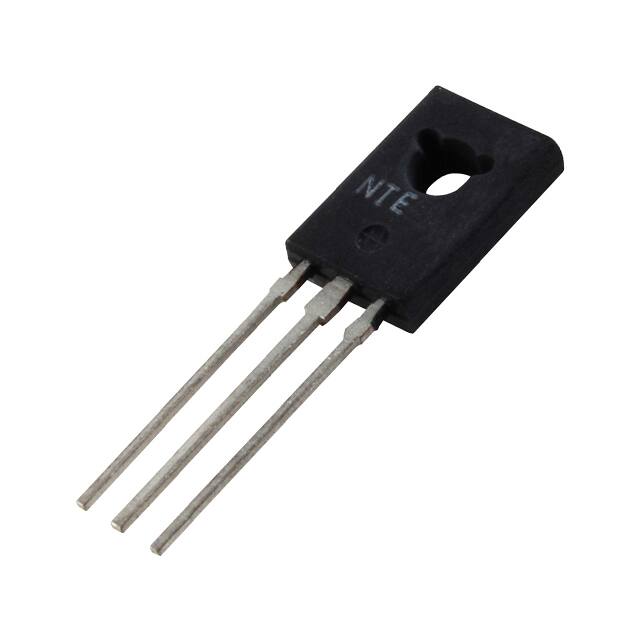

The NTE253 is a silicon complementary NPN Darlington transistor housed in a TO-126 type case. It is engineered for general-purpose amplifier and low-speed switching applications. This transistor boasts a high DC current gain, typically 2000 at an IC of 2A, and features monolithic construction with built-in base-emitter resistors to limit leakage multiplication.
Key electrical characteristics include a Collector-Emitter Breakdown Voltage (VCEO) of 80V and a continuous Collector Current (IC) of 4A. The Collector-Emitter Saturation Voltage (VCE(sat)) is rated at a maximum of 3.0V at 4A. The operating junction temperature range is from -65°C to +150°C, with a total power dissipation of 40W at 25°C case temperature.
The NTE253 is designed for through-hole mounting. Its robust construction and electrical specifications make it suitable for various amplification and switching tasks in electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NTE253 transistor has a maximum continuous collector current of 4A.
The collector-emitter breakdown voltage (VCEO) for the NTE253 is 80V.
The NTE253 transistor has a typical DC current gain (hFE) of 2000 at IC = 2A.
The operating junction temperature range for the NTE253 is -65°C to +150°C.
The NTE253 transistor is supplied in a TO-126 package.
The NTE253 transistor is designed for through-hole mounting.
