| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

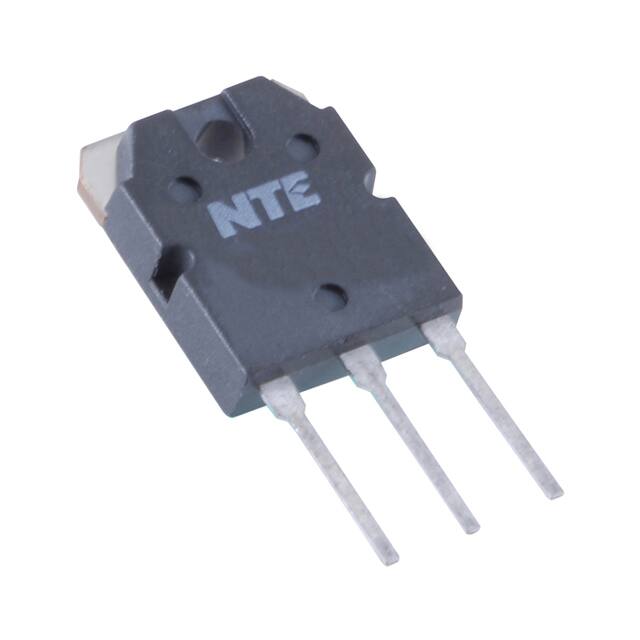

The NTE2393 is an N-Channel MOSFET designed for power applications. It features a maximum drain-source voltage (Vdss) of 500V and can handle a continuous drain current of 10A at the case temperature.
With a maximum power dissipation of 125W (Tc), this MOSFET is suitable for various power switching and amplification tasks. Its on-state resistance (Rds On) is a maximum of 670mOhm at 5A and 10V gate drive voltage. The threshold voltage (Vgs(th)) is 4V at 1mA, and the gate-source voltage can range up to ±20V.
This component operates at temperatures up to 150°C (TJ). It is housed in a TO-3P package and utilizes Through Hole mounting.
The NTE2393 is manufactured by NTE Electronics and is part of their transistor offerings.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 500 V.
The maximum drain current is 10 A.
The maximum power dissipation is 125 W.
It comes in a TO-3P package.
The maximum operating temperature is 150°C.
Yes, it is RoHS3 compliant.
