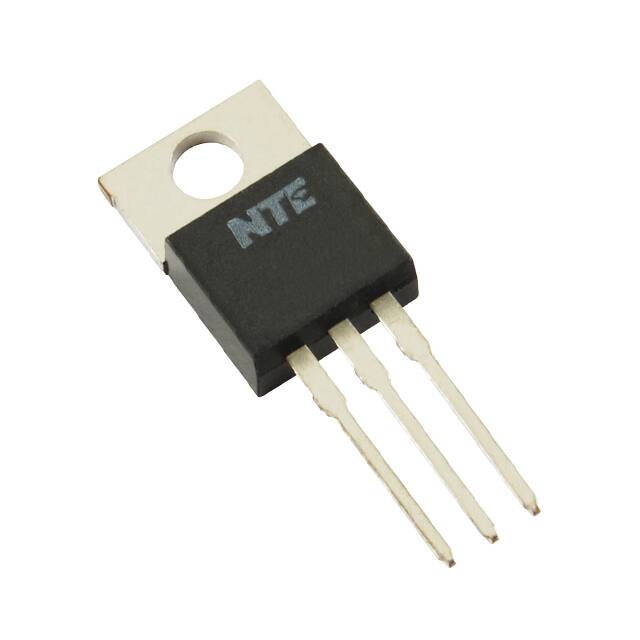

NTE2380 The NTE Electronics NTE2380 is an N-Channel MOSFET with a 500V drain-to-source voltage and 2.5A current rating. It comes in a TO-220 package.
Mfr Part #:

NTE2380

Available from 1 distributors
Mfr Name: NTE Electronics
NTE Electronics
The NTE Electronics NTE2380 is an N-Channel MOSFET with a 500V drain-to-source voltage and 2.5A current rating. It comes in a TO-220 package.
✓ Total Stock: 1 pcs
$ Price Range: $0.99

NTE2380 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTE2380 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Supplier Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NTE2380 Description

Short technical summary and product information.

The NTE Electronics NTE2380 is a single N-Channel MOSFET designed for power switching applications. It features a high drain-to-source voltage (Vdss) of 500V and a continuous drain current (Id) of 2.5A at a case temperature (Tc).



This MOSFET utilizes Metal Oxide Semiconductor technology and is housed in a standard TO-220-3 package, suitable for through-hole mounting. Key electrical characteristics include a maximum gate charge (Qg) of 15 nC at 10V and a maximum on-resistance (Rds On) of 3 Ohm at 1A and 10V gate-source voltage. The operating temperature range is from -55°C to 150°C.



With a maximum power dissipation of 40W (Tc), the NTE2380 is a robust component for various electronic designs. Its gate-to-source voltage (Vgs) tolerance is ±20V, and the threshold voltage (Vgs(th)) is 4V at 250µA.

NTE2380 Quick Information

Product Type: MOSFET
Canonical Name: NTE Electronics NTE2380 N-Channel MOSFET
Subcategory: Single

NTE2380 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTE2380 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTE2380 Features

  • N-Channel MOSFET with 500V drain-source voltage.
  • Continuous current rating of 2.5A at case temperature.
  • Low on-resistance of 3 Ohm at 1A, 10V.
  • TO-220 package for through-hole mounting.
  • Wide operating temperature range of -55°C to 150°C.

NTE2380 Applications

  • Suitable for power supply circuits.
  • Used in general purpose switching.
  • Applicable in motor control systems.
  • Ideal for high voltage applications.

NTE2380 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage for the NTE2380?

The maximum drain-to-source voltage (Vdss) for the NTE2380 is 500V.

What is the continuous current rating of the NTE2380 MOSFET?

The NTE2380 has a continuous current rating of 2.5A, specified at the case temperature (Tc).

What is the operating temperature range for the NTE2380?

The NTE2380 operates within a temperature range of -55°C to 150°C.

What package type is the NTE2380 MOSFET supplied in?

The NTE2380 is supplied in a TO-220-3 package.

How is the NTE2380 MOSFET mounted?

The NTE2380 is designed for through-hole mounting.
