| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Power | |
| Resistor | |
| Supplier Device Package | |
| Supplier Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

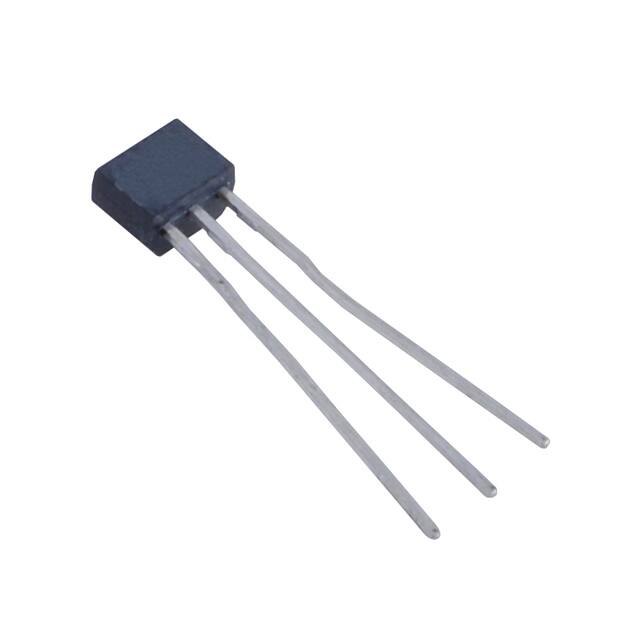

The NTE2359 is a single, pre-biased NPN bipolar junction transistor (BJT) manufactured by NTE Electronics. This component is designed for through-hole mounting and comes in a TO-226-3, TO-92-3 Short Body package, also known as TO-92S.
Key electrical characteristics include a maximum voltage rating of 50V and a maximum current handling capability of 100mA. The transistor offers a DC current gain (hFE) of at least 50 at 5mA and 5V, with a saturation voltage (Vce) of 300mV maximum at 250µA and 5mA. It operates at frequencies up to 250 MHz and has a power dissipation rating of 300 mW.
A built-in 47 kΩ resistor is integrated into the device, simplifying circuit design. The NTE2359 is suitable for various electronic applications requiring a pre-biased NPN transistor in a standard through-hole package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage for the NTE2359 transistor is 50V.
The NTE2359 can handle a maximum current of 100 mA.
The power rating for the NTE2359 transistor is 300 mW.
The NTE2359 has a built-in resistor with a value of 47 kΩ.
The NTE2359 is available in a TO-226-3, TO-92-3 Short Body package, also known as TO-92S.
