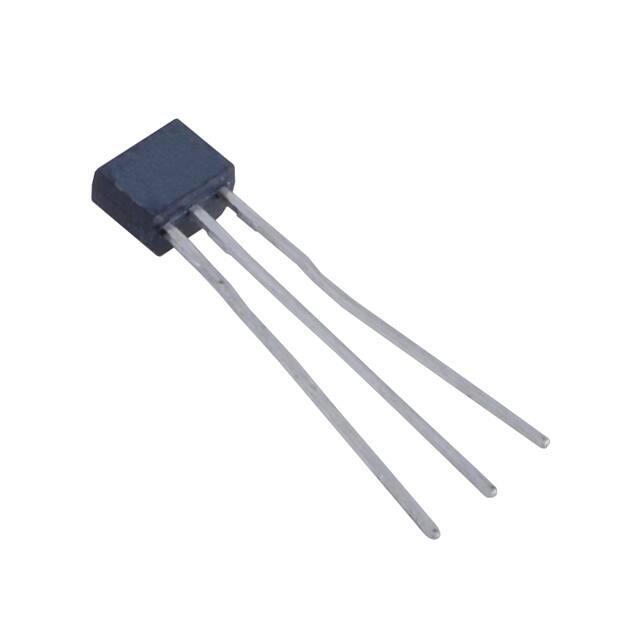

NTE2355 The NTE2355 is an NPN pre-biased transistor from NTE Electronics. It features a 10kΩ internal resistor and is housed in a TO-92S package.
Mfr Part #:

NTE2355

Available from 1 distributors
Mfr Name: NTE Electronics
NTE Electronics
The NTE2355 is an NPN pre-biased transistor from NTE Electronics. It features a 10kΩ internal resistor and is housed in a TO-92S package.
✓ Total Stock: 6 pcs
$ Price Range: $0.99

NTE2355 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTE2355 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Mounting Type
Power
Resistor
Supplier Device Package
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

NTE2355 Description

Short technical summary and product information.

The NTE2355 is a pre-biased NPN bipolar junction transistor (BJT) manufactured by NTE Electronics. This component is designed for through-hole mounting and comes in a TO-226-3, TO-92-3 Short Body package, also known as TO-92S.



Key electrical characteristics include a maximum collector-emitter voltage of 50V and a maximum collector current of 100mA. It operates at a frequency of up to 250MHz. The transistor includes an integrated 10kΩ resistor, simplifying circuit design. Its DC current gain (hFE) is a minimum of 50 at 10mA and 5V, with a Vce saturation of 300mV maximum at 500µA and 10mA. The power dissipation is rated at 300mW.



This pre-biased transistor is suitable for applications where a simple switching or amplification function is required with minimal external components. The integrated resistor provides a fixed base current, making it easier to bias the transistor for specific operating points. Its through-hole mounting makes it suitable for breadboarding and through-hole PCB assembly.

NTE2355 Quick Information

Product Type: Pre-Biased Transistor
Canonical Name: NPN Pre-Biased Transistor
Subcategory: Bipolar (BJT) - Single, Pre-Biased

NTE2355 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTE2355 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTE2355 Features

  • NPN pre-biased transistor with integrated 10kΩ resistor.
  • Maximum collector-emitter voltage of 50V.
  • Maximum collector current of 100mA.
  • Operates at frequencies up to 250MHz.
  • TO-92S package for through-hole mounting.

NTE2355 Applications

  • Ideal for simple switching applications.
  • Suitable for basic amplification circuits.
  • Used in general-purpose electronics.
  • Simplifies bias circuitry design.

NTE2355 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum voltage for the NTE2355 transistor?

The maximum collector-emitter voltage for the NTE2355 is 50V.

What is the maximum current the NTE2355 can handle?

The NTE2355 can handle a maximum collector current of 100mA.

What is the frequency response of the NTE2355 transistor?

The NTE2355 has a transition frequency of 250MHz.

Does the NTE2355 have an internal resistor, and what is its value?

Yes, the NTE2355 has an internal resistor with a value of 10kΩ.

What package type is the NTE2355 available in?

The NTE2355 is available in a TO-226-3, TO-92-3 Short Body package, also known as TO-92S.

How is the NTE2355 transistor mounted?

The NTE2355 is designed for through-hole mounting.
