| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Supplier Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

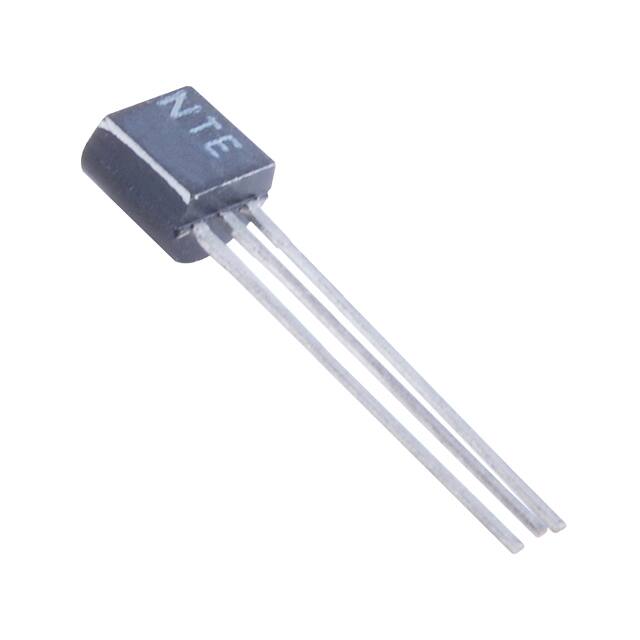

The NTE2341 is a bipolar junction transistor (BJT) from NTE Electronics, specifically an NPN Darlington type. It is designed for applications requiring high current gain and switching capabilities.
Key electrical specifications include a maximum collector-emitter voltage of 80V and a continuous collector current of up to 1A. The transistor has a maximum power dissipation of 1W and a typical DC current gain (hFE) of 2000 at 500mA and 10V. The saturation voltage (Vce) is a maximum of 1.8V at 1mA collector current.
This component operates at a maximum junction temperature of 150°C. It features a transition frequency of 200MHz. The NTE2341 is packaged in a TO-92 (TO-226-3, TO-92-3) through-hole configuration, making it suitable for standard PCB mounting.
Its robust specifications make it a reliable choice for various electronic circuits requiring amplification or switching functions where high gain is essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage for the NTE2341 is 80V.
The NTE2341 can handle a maximum continuous collector current of 1A.
The minimum DC current gain (hFE) for the NTE2341 is 2000 at 500mA and 10V.
The NTE2341 operates at a maximum junction temperature of 150°C.
The NTE2341 is available in a TO-92 package.
The NTE2341 is designed for through-hole mounting.
