| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base - Emitter Saturation Voltage | |
| Collector Current | |
| Collector Cut-Off Current | |
| Collector Power Dissipation | |
| Collector-Emitter Breakdown Voltage | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| DC Current Gain Hfe (Minimum @ VCE = 3 V, IC = 8 A) | |
| Emitter Cut-off Current | |
| Energy Handling Capability | |
| Fall Time | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature Range | |
| Storage Time | |
| Supplier Device Package | |
| Supplier Package | |
| Transistor Type | |
| Transition Frequency | |
| Turn On Time | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

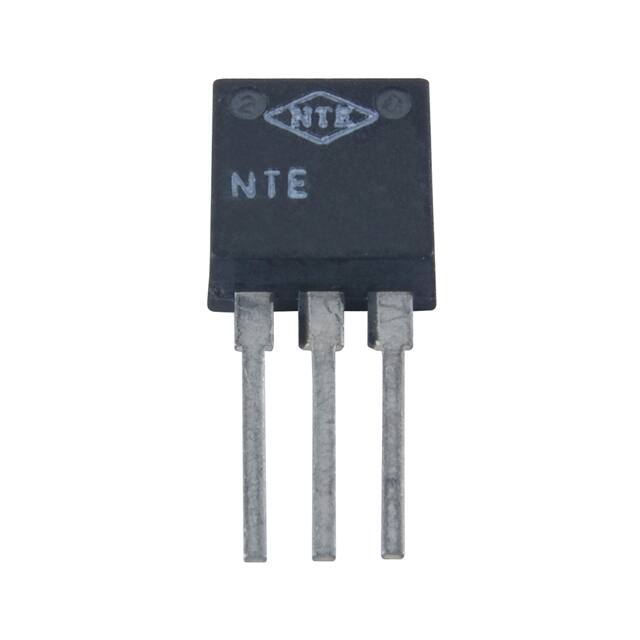

The NTE2340 is a silicon NPN bipolar junction transistor featuring a Darlington configuration, making it suitable for power amplifier and high-speed switching applications. It boasts a collector-emitter voltage rating of 60V and can handle a continuous collector current of 8A, with a peak current capability of 12A.
Key electrical characteristics include a minimum DC current gain (hFE) of 2000 at 4A and 3V, and a collector-emitter saturation voltage (VCE(sat)) of 1.5V maximum at 8mA base current and 4A collector current. The transition frequency (fT) is 20MHz.
Thermal performance is supported by a collector power dissipation of 1.3W at ambient temperature and 45W at case temperature (+25°C). The operating junction temperature is rated up to 150°C.
This transistor is housed in a 3-SIP (Single In-line Package) and is designed for through-hole mounting. It also features a built-in 60V Zener diode between the collector and base for protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage rating (VCEO) for the NTE2340 is 60V.
The NTE2340 can handle a continuous collector current (IC) of 8A.
The collector power dissipation (PC) at an ambient temperature of +25°C is 1.3W.
The maximum operating junction temperature (TJ) for the NTE2340 is 150°C.
The DC current gain (hFE) of the NTE2340 is between 2000 and 5000 at 4A collector current and 3V collector-emitter voltage.
The NTE2340 is designed for through-hole mounting.
