| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

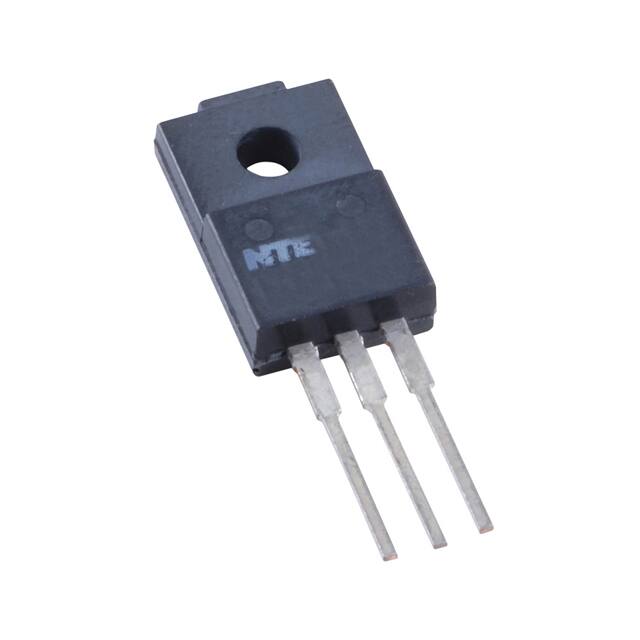

The NTE Electronics NTE2337 is a single NPN bipolar junction transistor (BJT) housed in a TO-220 package. This component is rated for a maximum collector-emitter voltage of 500V and a continuous collector current of 7A.
With a power dissipation of 2W and a frequency response up to 20MHz, the NTE2337 is suitable for various switching and amplification tasks. Its DC current gain (hFE) is a minimum of 15 at 100mA and 5V, with a Vce saturation of 1V maximum at 800mA and 4A.
The transistor operates at junction temperatures up to 150°C. It is designed for through-hole mounting, making it compatible with standard PCB assembly processes. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1.
This component is ideal for designers seeking a reliable NPN transistor with robust voltage and current handling capabilities for power supply circuits, motor control, and general amplification stages.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage is 500V.
The continuous collector current is 7A.
The power dissipation is 2W.
The operating temperature range is up to 150°C (TJ).
The NTE2337 is supplied in a TO-220 package.
The NTE2337 is designed for through-hole mounting.
