| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

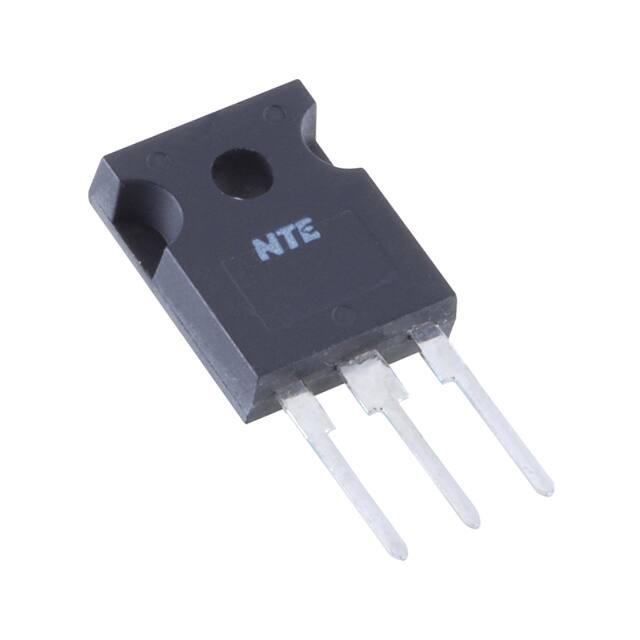

The NTE2305 is a single NPN bipolar junction transistor (BJT) manufactured by NTE Electronics. It is designed for through-hole mounting and comes in a TO-3PN package.
Key electrical characteristics include a maximum collector-emitter voltage of 160V and a maximum continuous collector current of 16A. The transistor has a DC current gain (hFE) of at least 15 at 8A and 2V, with a Vce saturation of up to 3.5V at 2A and 16A. Its transition frequency (fT) is 1MHz.
With a power dissipation rating of 125W, the NTE2305 is suitable for applications requiring significant power handling. The operating temperature range is from -65°C to 150°C (TJ).
This component is classified under Transistors - Bipolar (BJT) - Single and is ideal for general-purpose amplification and switching applications where its voltage and current ratings are beneficial.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -65°C to 150°C (TJ).
The maximum continuous collector current is 16A.
The package is TO-3PN.
The RoHS status is RoHS3 Compliant.
