| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Derate above 25°C | |
| Frequency | |
| Maximum Lead Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum @ T J) | |
| Power | |
| Power Dissipation (Maximum @ T_C = +25 °C) | |
| Power Dissipation (Maximum @ T_C = 100 °C) | |
| Safe Operating Area | |
| Storage Temperature (Minimum/Maximum @ T stg) | |
| Supplier Device Package | |
| Switching Times | |
| Thermal Resistance - Junction to Case | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage | |
| current (Maximum @ I B) | |
| current (Maximum @ I E) | |
| voltage (Maximum @ V CEX) | |
| voltage (Maximum @ V EB) |

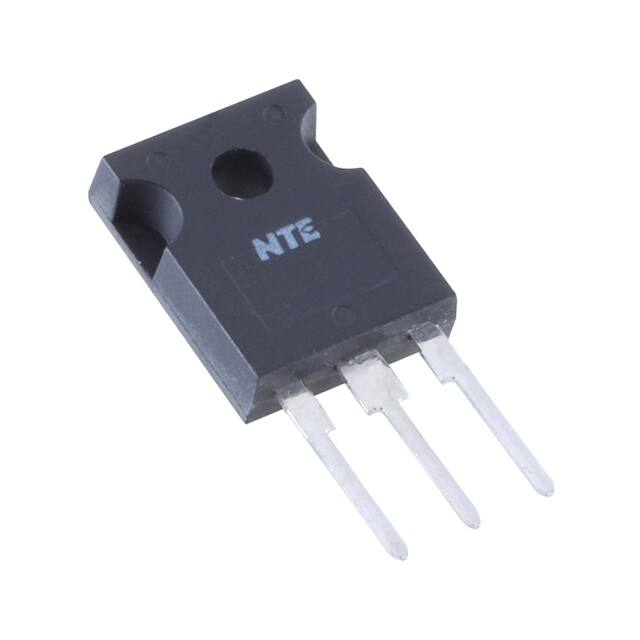

The NTE2301 is a silicon NPN power transistor from NTE Electronics, housed in a TO-218 package. It is specifically designed for use in large screen deflection circuits, offering high voltage capabilities.
Key electrical specifications include a Collector-Emitter Voltage (V CEO) of 750V and a maximum Collector-Emitter Voltage (V CEX) of 1500V. The continuous collector current (I C) is rated at 5A, with a continuous emitter current (I E) of 9A and a continuous base current (I B) of 4A. The transistor can dissipate up to 100W of power at 25°C, with a derating of 0.8W/°C above that temperature.
Thermal characteristics include an operating junction temperature range of -65°C to +150°C and a junction-to-case thermal resistance of 1.25°C/W. The maximum lead temperature during soldering is 275°C. The NTE2301 also features a glassivated base-collector junction and a typical switching time (t f) of 0.4 µs with inductive loads at 4.5A.
This transistor is suitable for applications requiring high voltage switching and power handling. Its through-hole mounting type and TO-218 package facilitate integration into various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum Collector-Emitter voltage (V CEX) for the NTE2301 is 1500V.
The NTE2301 has a continuous collector current rating of 5A.
The NTE2301 has a total power dissipation of 100W at 25°C.
The operating junction temperature range for the NTE2301 is -65°C to +150°C.
The NTE2301 transistor is supplied in a TO-218 package.
The NTE2301 transistor is mounted using the Through Hole method.
