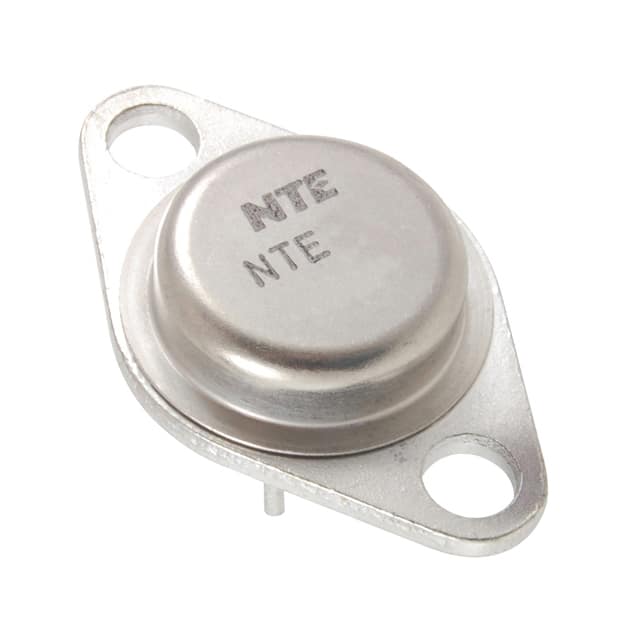

NTE174 NTE174 is a germanium alloyed junction damper diode rated for 270V peak reverse voltage and 6A average rectified forward current. It features a low forward voltage drop of 0.6V at 5A.
Mfr Part #:

NTE174

Available from 1 distributors
Mfr Name: NTE Electronics
NTE Electronics
NTE174 is a germanium alloyed junction damper diode rated for 270V peak reverse voltage and 6A average rectified forward current. It features a low forward voltage drop of 0.6V at 5A.
✓ Total Stock: 4 pcs

NTE174 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTE174 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Supplier Device Package
Technology
Voltage
View Similar Products (0)

NTE174 Description

Short technical summary and product information.

The NTE174 is a germanium damper diode designed for TV horizontal deflection circuits. It features an alloyed junction construction, providing reliable performance. Key electrical ratings include a maximum peak reverse voltage of 270V, average rectified forward current of 6A, and peak forward current of 10A. The forward voltage drop is only 0.6V at 5A, and reverse leakage current is 5mA at 270V. The diode is housed in a TO-66 package with through-hole mounting, making it suitable for various power supply and deflection applications. The package case is TO-213AA, TO-66-2 with a supplier package of TO-66. Body diameter is 6.5mm and length is 22.97mm.

NTE174 Quick Information

Product Type: Germanium Damper Diode
Canonical Name: Germanium Damper Diode

NTE174 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTE174 Features

  • Germanium alloyed junction damper diode.
  • Rated for 270V peak reverse voltage.
  • Average forward current of 6 amps.
  • Low forward voltage drop of 0.6V.
  • Through-hole TO-66 package mounting.

NTE174 Applications

  • TV horizontal deflection damper circuits.
  • Power supply rectification applications.
  • General purpose germanium diode use.

NTE174 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the peak reverse voltage of NTE174?

270V.

What is the average forward current rating?

6A.

What is the forward voltage drop?

0.6V at 5A.

What package does NTE174 come in?

TO-66 (TO-213AA, TO-66-2).

What is the peak forward current?

10A.
