| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Quiescent Current | |
| SVHC Present | |
| Voltage |

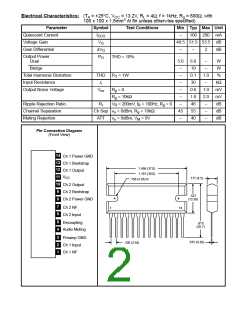

The NTE1377 is an integrated circuit designed as an AF power amplifier by NTE Electronics. It provides a dual-channel output power of up to 6W per channel with a typical voltage gain of 51.5 dB. The device exhibits a low total harmonic distortion of 0.1% at 1W output power.
Key electrical characteristics include a quiescent current of 100 mA typical and an input resistance of 30 kΩ. The amplifier also features good channel separation of 55 dB and muting rejection of 40 dB. It operates with a typical supply voltage of 13.2V.
This power amplifier is suitable for various audio amplification applications where reliable performance and moderate power output are required. Its through-hole mounting type facilitates integration into circuit designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical operating voltage is 13.2 V.
Typical output power is 5 W into 4Ω at 10% THD, and 19 W in bridge configuration.
Typical quiescent current is 100 mA.
Typical voltage gain is 51.5 dB.
Typical THD is 0.1% at 1W output.
Typical input resistance is 30 kΩ.
Typical channel separation is 55 dB.
