| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

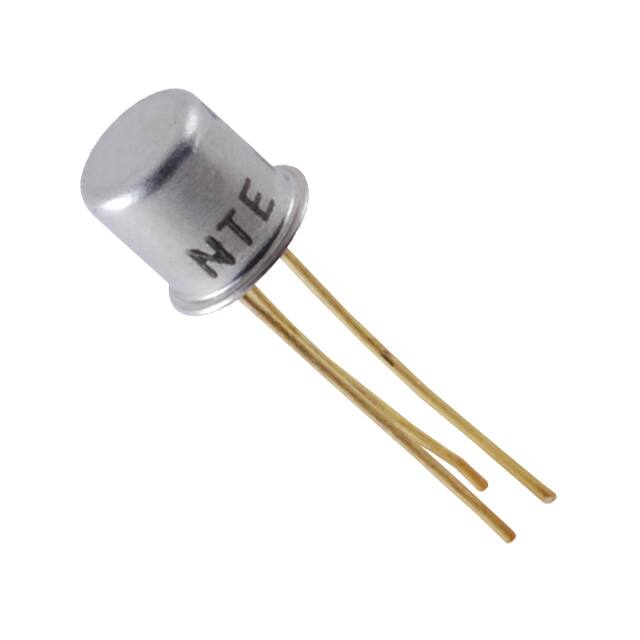

The NTE Electronics NTE126 is a Germanium PNP transistor specifically designed for high-speed switching applications. It comes in a standard TO-18 type package, also known as TO-206AA, with through-hole mounting.
This transistor offers a collector-emitter voltage of up to 15Vdc and a collector-base voltage of 15Vdc, with an emitter-base voltage limit of 2.5Vdc. The device has a total power dissipation of 150mW at 25°C ambient temperature, derating at 2.0mW/°C above 25°C. When operated at 25°C case temperature, the power dissipation increases to 300mW, derating at 4.0mW/°C.
Key electrical characteristics include a minimum DC current gain (hFE) of 40 at various current levels. The collector-emitter saturation voltage (VCE(sat)) is specified at a maximum of 0.18V at 10mA/1mA, up to 0.60V at 100mA/10mA. The current-gain-bandwidth product (fT) is 300MHz, and output capacitance (Cob) is a maximum of 4.0pF. Switching times are also detailed, with turn-on time at 50ns and turn-off time at 85ns.
The operating and storage junction temperature range for the NTE126 is from -65°C to +100°C. This transistor is suitable for applications requiring fast switching speeds and reliable performance within its specified parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCE) for the NTE126 transistor is 15 Vdc.
The operating junction temperature range for the NTE126 transistor is -65°C to +100°C.
The NTE126 transistor is supplied in a TO-18 type package, also referred to as TO-206AA, Metal Can.
The minimum DC current gain (hFE) for the NTE126 transistor is 40 at 100mA collector current and 1V collector-emitter voltage.
The current-gain-bandwidth product (fT) for the NTE126 is a minimum of 300 MHz.
