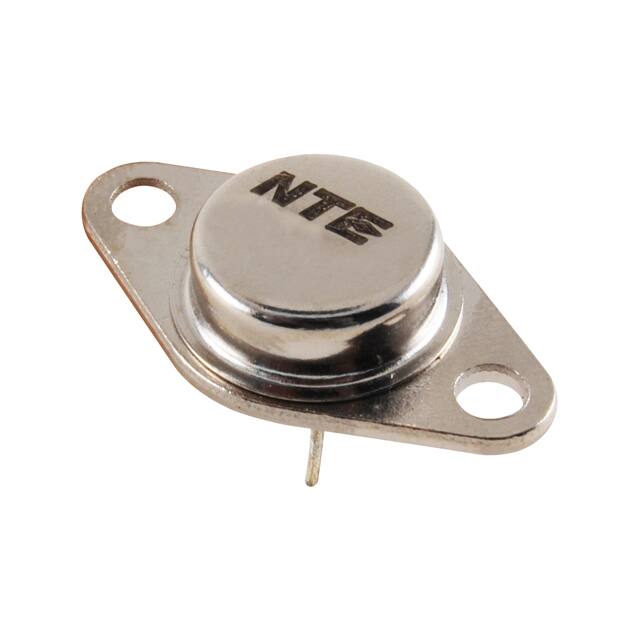

NTE124 The NTE124 is an NPN bipolar transistor from NTE Electronics, rated for 300V and 1A. It features a TO-66 package and through-hole mounting.
Mfr Part #:

NTE124

Available from 1 distributors
Mfr Name: NTE Electronics
NTE Electronics
The NTE124 is an NPN bipolar transistor from NTE Electronics, rated for 300V and 1A. It features a TO-66 package and through-hole mounting.
✓ Total Stock: 1 pcs
$ Price Range: $0.99

NTE124 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTE124 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Mounting Type
Operating Temperature
Power
Supplier Device Package
Supplier Package
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

NTE124 Description

Short technical summary and product information.

This NTE124 transistor from NTE Electronics is an NPN bipolar junction transistor (BJT) designed for general-purpose applications. It offers a maximum collector-emitter voltage of 300V and a continuous collector current of 1A.



The transistor has a DC current gain (hFE) of 40 minimum at 100mA and 10V, with a Vce saturation of 2.5V maximum at 25mA and 250mA. It operates within a temperature range of -65°C to 200°C (TJ) and dissipates up to 20W of power.



Packaged in a TO-66 (TO-213AA, TO-66-2) case, the NTE124 is designed for through-hole mounting. Its frequency response extends to 10MHz.



This component is RoHS3 compliant and has an MSL rating of 1.

NTE124 Quick Information

Product Type: Bipolar Transistor
Canonical Name: NTE Electronics NTE124 NPN Bipolar Transistor
Subcategory: Single

NTE124 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTE124 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTE124 Features

  • NPN bipolar junction transistor.
  • 300V collector-emitter voltage rating.
  • 1A continuous collector current.
  • TO-66 package for through-hole mounting.
  • Wide operating temperature range.

NTE124 Applications

  • Suitable for general-purpose amplification.
  • Used in power switching circuits.
  • Applicable in voltage regulation.
  • Ideal for signal processing.

NTE124 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the NTE124 transistor?

The NTE124 transistor has a maximum collector-emitter voltage of 300V.

What is the package type of the NTE124 transistor?

The NTE124 transistor is available in a TO-66 package, also specified as TO-213AA, TO-66-2.

What is the operating temperature range for the NTE124?

The operating temperature range for the NTE124 transistor is -65°C to 200°C (TJ).

Is the NTE124 transistor RoHS compliant?

Yes, the NTE124 transistor is RoHS3 compliant.
