| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Dissipation | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

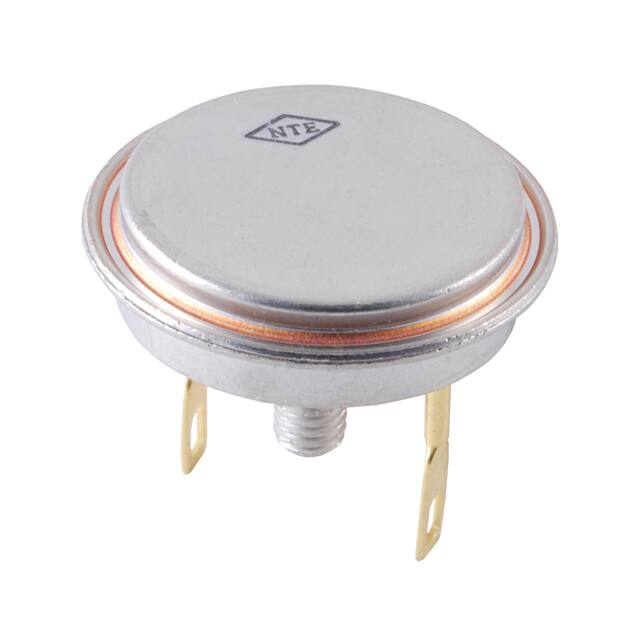

The NTE105 from NTE Electronics is a Germanium PNP power transistor suitable for power switching and amplifier applications. It features a Collector Base Voltage of 40V and a maximum Collector Current of 15A. The transistor operates within a temperature range of -65°C to 100°C.
This component is housed in a TO-36 package and is designed for stud mounting. Key electrical characteristics include a Collector Emitter Voltage of 25V and a DC Current Gain (hFE) of 20 at 5A and 2V. The maximum power dissipation is rated at 100W, with a general power dissipation of 150W.
Additional specifications include an Emitter Base Voltage of 20V and a Collector Current Cutoff (ICBO) of 8mA. The Vce Saturation is a maximum of 300mV at 2A and 12A.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector current for the NTE105 is 15A.
The collector base voltage of the NTE105 is 40V.
The operating temperature range for the NTE105 is -65°C to 100°C.
The NTE105 transistor is in a TO-36 package.
The NTE105 transistor is designed for stud mounting.
The DC Current Gain (hFE) is a minimum of 20 at 5A collector current and 2V collector-emitter voltage.
The NTE105 is RoHS3 Compliant.
