| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
239,500 pcs
|
239500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12,164 pcs
|
12164 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The NTD5867NL-1G from ON Semiconductor is a power MOSFET designed for various applications requiring efficient switching. This N-Channel MOSFET features a maximum drain-to-source voltage (Vdss) of 60V and can handle a continuous drain current of 20A at 25°C case temperature.
Key electrical characteristics include a low on-resistance (Rds(on)) of 39mOhm maximum at 10A and 10V gate-to-source voltage, and 50mOhm maximum at 10A and 4.5V gate-to-source voltage. The gate threshold voltage (Vgs(th)) is typically 1.8V at 250µA. It also offers a high current capability and is 100% avalanche tested.

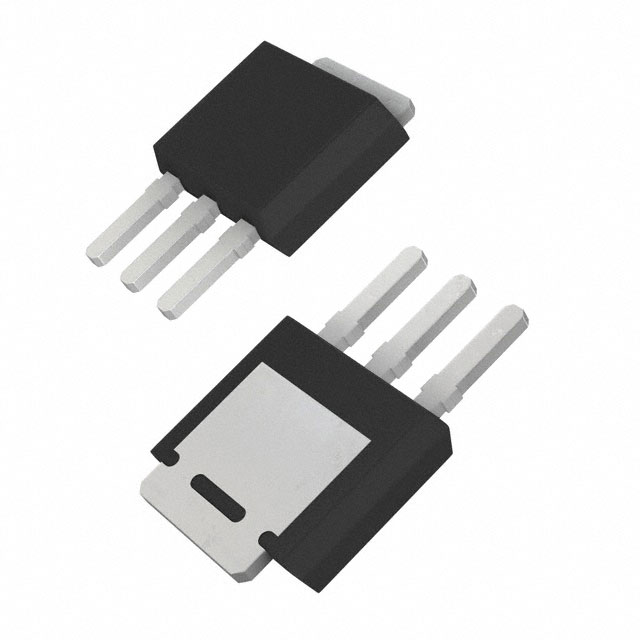

This device is available in a TO-251-3 Short Leads, IPak package, suitable for through-hole mounting. The operating junction and storage temperature range is -55°C to 150°C. It is designed to be Pb-Free and Halogen Free, complying with RoHS standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) for the NTD5867NL-1G is 60V.
The NTD5867NL-1G is supplied in a TO-251-3 Short Leads, IPak package.
The operating junction and storage temperature range is -55°C to 150°C.
Yes, the NTD5867NL-1G is RoHS3 Compliant.
The maximum Rds On is 39mOhm at 10A and 10V, and 50mOhm at 10A and 4.5V.
The continuous drain current is 20A at 25°C case temperature and 13A at 100°C case temperature.
