| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49,425 pcs
|
49425 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

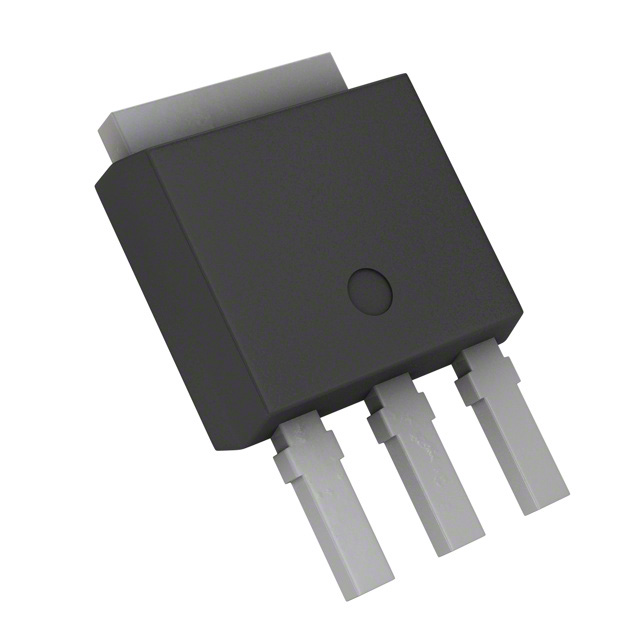

The ON Semiconductor NTD4815N-35G is an N-Channel MOSFET with a drain-source voltage (Vdss) of 30V. It is suitable for various power switching applications.
Key electrical characteristics include a maximum on-resistance (Rds On) of 15mOhm at 30A and 10V, and a gate threshold voltage (Vgs(th)) of 2.5V at 250µA. The input capacitance (Ciss) is 770 pF at 12V, and the gate charge (Qg) is 14.1 nC at 11.5V. The device can handle a continuous drain current of 6.9A at ambient temperature and up to 35A at case temperature.
This MOSFET operates within a temperature range of -55°C to 175°C (TJ). It is packaged in a TO-251-3 Stub Leads, IPak configuration, suitable for through-hole mounting.
The NTD4815N-35G is classified under RoHS3 compliance and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vdss) for the NTD4815N-35G is 30V.
The continuous drain current is 6.9A at ambient temperature and 35A at case temperature.
The NTD4815N-35G is supplied in a TO-251-3 Stub Leads, IPak package.
The operating temperature range is -55°C to 175°C (TJ).
The Rds On is a maximum of 15mOhm at 30A drain current and 10V gate-source voltage.
