| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,136 pcs
|
1136 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The On Semiconductor NTD4809NT4G is a single N-Channel MOSFET belonging to the Metal Oxide Semiconductor technology family. It is designed for power applications and offers a drain-to-source voltage (Vdss) of 30V.
Key electrical characteristics include a maximum continuous drain current of 9.6A at ambient temperature and 58A at case temperature, with a low on-resistance of 9mOhm at 30A and 10V. The gate charge (Qg) is 25nC at 11.5V, and the gate threshold voltage (Vgs(th)) is 2.5V at 250µA. The operating temperature range is from -55°C to 175°C.

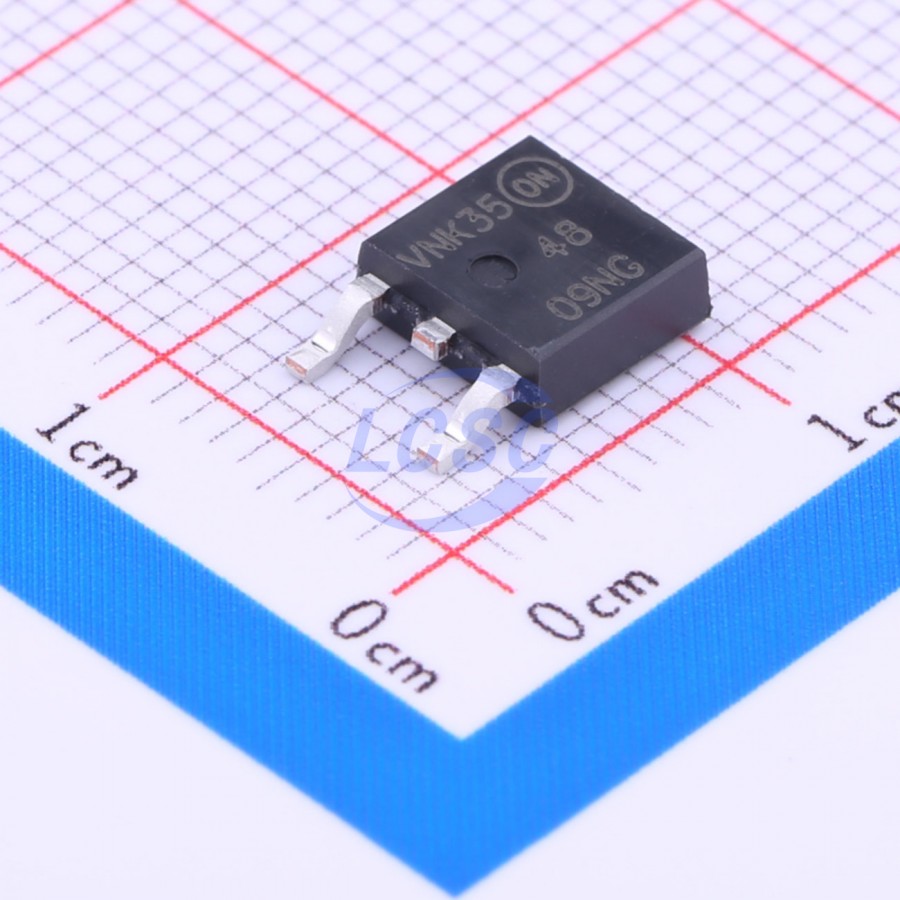

This MOSFET is housed in a TO-252-3, DPak (2 Leads + Tab), SC-63 package, suitable for surface mounting. The maximum power dissipation is 1.4W at ambient temperature and 52W at case temperature. It is rated for a gate-source voltage of ±20V.
This component is suitable for various power switching and control applications where efficient power management is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 30V.
The maximum input capacitance (Ciss) is 1456 pF at Vds = 12V.
The maximum gate charge (Qg) is 25 nC at Vgs = 11.5V.
The maximum gate-source voltage (Vgs) is ±20V.
The operating temperature range is from -55°C to 175°C.
It comes in a TO-252-3, DPAK surface-mount package.
