| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| B Value Tolerance | |
| B25 | |
| B25/85 Value | |
| Dissipation Factor | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Resistance @ 25°C | |
| Resistance Tolerance | |
| Resistance in Ohms @ 25°C | |
| Response Time | |
| Thermal Time Constant |

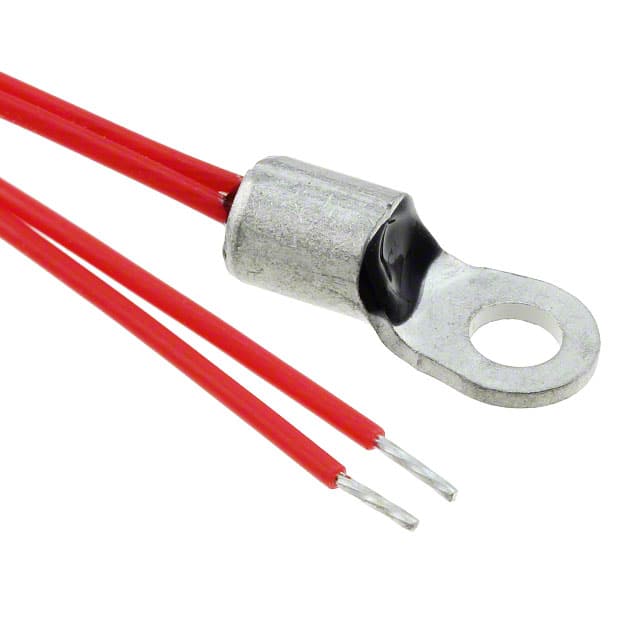

The Vishay Dale NTCALUG01A103G is an NTC (Negative Temperature Coefficient) thermistor designed for surface sensing applications requiring good electrical insulation and thermal contact with a chassis. It features a resistance of 10k Ohms at 25°C with a tolerance of ±2%, and a B25/85 value of 3984K with a tolerance of ±0.5%.
This thermistor operates within a temperature range of -40°C to 150°C. It has a length of 38.00mm and is constructed with a rugged design and a PTFE insulated cable. The mounting type is a Ring Lug, allowing for easy attachment to surfaces.
The NTCALUG01A103G is AEC-Q200 qualified and cULus recognized. It is suitable for applications where precise temperature sensing and good thermal coupling are essential, such as in automotive or industrial control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 10 kOhms at 25°C.
The resistance tolerance is ±2%.
The B25/85 value is 3984K.
The B value tolerance is ±0.5%.
The operating temperature range is -40°C to 150°C.
It features a Ring Lug mounting type.
The response time is 4s.
